10G Full-rate Bit Error Rate Tester With 12-channel Parallel Input And Output

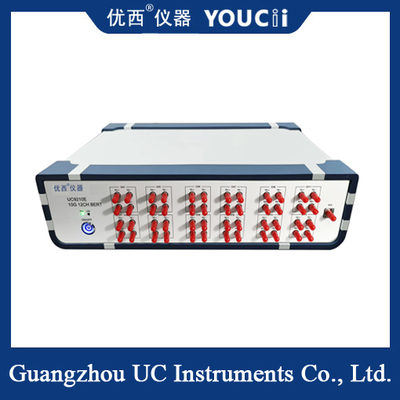

Large Image : 10G Full-rate Bit Error Rate Tester With 12-channel Parallel Input And Output

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCii
Model Number:	U9210E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate a price
Packaging Details:	cartons
Delivery Time:	21 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5pcs+per month

Contact Now

10G Full-rate Bit Error Rate Tester With 12-channel Parallel Input And Output

Description

Material:	Metal	Code Type:	PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
Pattern Reversal:	Supports Signal Reversal At The Receiving End	Data Rate:	622M Up To 15Gbps
Rise And Fall Time (20% To 80%):	18~23ps	Data Output Jitter (RMS):	1.5 (10.3125G Down)ps
Highlight:	10G Error Rate Tester , Error Rate Tester PRBS23 Code Type

10G Full-rate Bit Error Rate Tester With 12-channel Parallel Input And Output

The 10G 12-channel bit error rate tester is a high-performance bit error rate testing device that supports 12 independent channels and has a rate coverage of 622M to 15Gbps. It is mainly used for signal integrity verification in optical communication, data centers, and high-speed interconnection scenarios.

There are 12 electrical port channels, with parallel input and output for 12 channels. The bit error test can be conducted independently for each channel.
Support continuous bit error detection and timed bit error monitoring. Supports 10G full rate (622M to 15Gbps, over 20 conventional rate points, suitable for current conventional active modules);
Supported sizes: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31
1 channel of low-jitter clock output.

No.	parameter	minimum	typical	maximum	unit
1	Data rate	0.622	0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15	15	Gbps
2	Code type		PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
3	Rise and fall time (20% to 80%)		18	23	ps
4	Pattern reversal		Supports signal reversal at the receiving end
5	Signal output amplitude (single-ended)	200	800	1000	mV
6	Data output jitter (RMS)		1.5 (10.3125G down)		ps
7	Data input/output interface		Differential, AC coupling, 50 ohm impedance, SMA
8	Clock output	100	156.25	156.25	MHz
9	Data signal input sensitivity (single-ended)		0.1		Vpp
10	Data output eye graph intersections	50	52	54	%
11	Operating temperature	10	25	50	°C

Technical features
High-precision bit error detection
Low jitter and high sensitivity
Modularization and scalability
Portability and compact design

10G Full-rate Bit Error Rate Tester With 12-channel Parallel Input And Output 0
