Product Description:
The BERT Tester is a high-quality testing equipment designed for accurate and efficient testing of digital communication systems. With its advanced features and reliable performance, the BERT Tester is an essential tool for ensuring the quality and reliability of data transmission.
With a data rate capability of 622M up to 15Gbps, the BERT Tester provides versatile testing options for various communication systems, including telecommunications, data centers, and networking equipment. Whether you need to test Ethernet, Fibre Channel, or other high-speed interfaces, the BERT Tester delivers reliable and consistent results.
The U9210E model of the BERT Tester offers a user-friendly interface and intuitive controls, allowing for easy operation and quick setup. Its compact size and lightweight design make it portable and convenient for on-site testing and troubleshooting.
Overall, the BERT Tester is a versatile and reliable testing instrument that offers precise measurements, fast data rates, and durable construction. Whether you are conducting research, testing equipment, or troubleshooting network issues, the BERT Tester is an essential tool for ensuring the integrity and performance of your digital communication systems.
Technical Parameters:
| No. |
parameter
|
minimum
|
typical
|
maximum
|
unit
|
| 1 |
Data rate
|
0.622 |
0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 |
15 |
Gbps |
| 2 |
Code type
|
|
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 |
|
|
| 3 |
Rise and fall time (20% to 80%)
|
|
18 |
23 |
ps |
| 4 |
Pattern reversal
|
|
Supports signal reversal at the receiving end
|
|
|
| 5 |
Signal output amplitude (single-ended)
|
200 |
800 |
1000 |
mV |
| 6 |
Data output jitter (RMS)
|
|
1.5 (10.3125G down)
|
|
ps |
| 7 |
Data input/output interface
|
|
Differential, AC coupling, 50 ohm impedance, SMA
|
|
|
| 8 |
Clock output
|
100 |
156.25 |
156.25 |
MHz |
| 9 |
Data signal input sensitivity (single-ended)
|
|
0.1 |
|
Vpp |
| 10 |
Data output eye graph intersections
|
50 |
52 |
54 |
% |
| 11 |
Operating temperature
|
10 |
25 |
50 |
°C |
Applications:

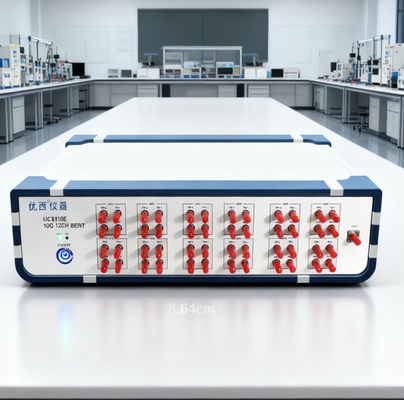

In response to the trend of high-speed and multi-channel communication systems in modern times, the 15G 12-channel electrical port bit error rate tester has developed a "high-speed + multi-channel" test solution. The rate covers 622M to 15G, encompassing all electrical signal transmission scenarios from traditional to cutting-edge. The 12 independent channels can simultaneously conduct bit error rate tests on different links, greatly enhancing the testing efficiency. Its electrical port adaptability makes it a "professional-level player" for verifying signal integrity in scenarios such as data centers, telecommunication machine rooms, and scientific research laboratories.
