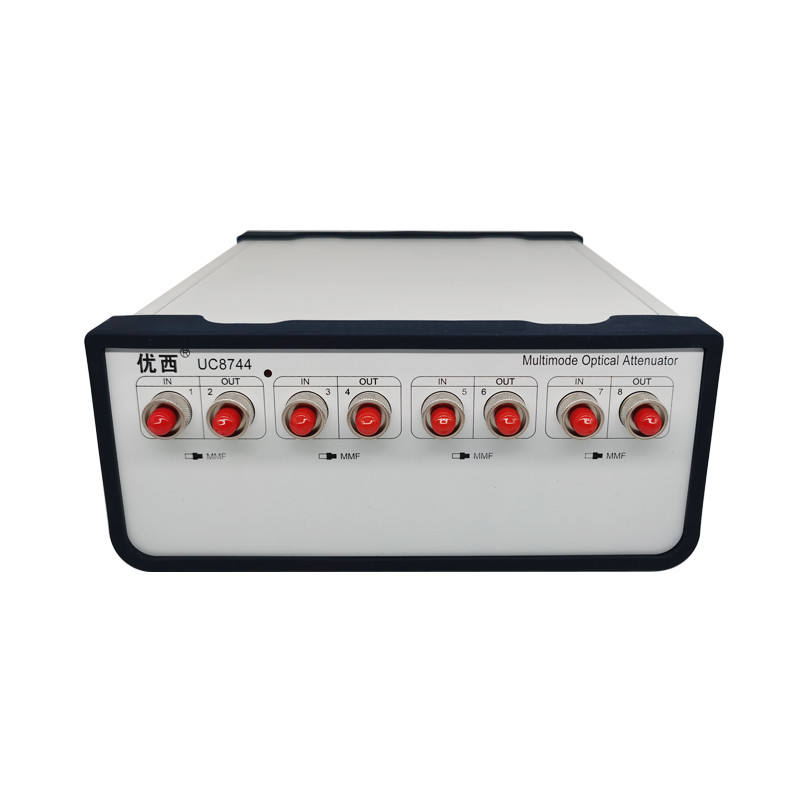

Multimode Optical Controlled Fiber Optic Attenuator 4 Channel

Multimode Optical Controlled Fiber Optic Attenuator 4 Channel
Multimode Optical Controlled Fiber Optic Attenuator 4 Channel

Large Image :  Multimode Optical Controlled Fiber Optic Attenuator 4 Channel

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8744
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 pcs+per month

Multimode Optical Controlled Fiber Optic Attenuator 4 Channel

Description
Product Name: Optical Controlled Fiber Optic Attenuator Calibration Wavelength (Option): 850 Nm
Insertion Loss: ≤ 1.8 DB Type 1.5dB Fiber Type: 50 /125um, 62.5/125um MMF Adaptive
Connector Type: FC/UPC Connector Averaging Time Of Monitor PM: 2~1000 Ms
Highlight:

fiber optic attenuator 4 Channel

,

62.5 125um fiber optical attenuator

,

50 125um fiber optic attenuator

U8744 4 channel Multimode optical-controlled optical attenuator



Features

Fast and accurate setting of optical attenuation and optical power output, optical power control stability time ≤ 200 ms.

Multi-channel attenuator is set at the same time, multiple ports are measured at the same time, saving a lot of measuring time;

Built-in high-precision optical power meter ensures the stability and accuracy of power monitoring;

Simple operation, intuitive graphical user interface, multi-channel data preview at the same time, test status at a glance.

Small size, compact structure, two 4-channel equipment cascade, can be identified as an 8-channel equipment.



Applications



Active optical module:

In the multi-channel error code measurement of optical transceiver module, parallel data measurement is realized.

In the sensitivity measurement of optical receiving module, it provides parallel fast and accurate optical power input;

200 ms optical power control stability time, greatly improve test efficiency.



Optical communication network integration test:

In optical communication network integration, test network transmission performance and network management function.



Model # U8744
Attenuator Range 0~35 dB(40dB Type)
Calibration Wavelength (Option) 850 nm (Other wavelengths are optional)
Insertion Loss ≤ 1.8 dB Type 1.5dB
Fiber Type 50 /125um, 62.5/125um MMF adaptive
Connector Type FC/UPC Connector
Attenuation Accuracy

± 0.20 dB (0 ~ 20 dB), ± 0.30 dB (20 ~ 35 dB)

± 0.05 dB (0 ~ 30 dB With Power control)

Repeatability ±0.05 dB
Averaging time of monitor PM 2~1000 ms
Settling Time 200ms
Attenuation Transition Speed 0.1 ~ 35 dB/s
Return Loss > 25 dB
Communication Interface RS232, USB, RJ45 Control by PC
Maximum safe input power +17dBm(In power monitoring mode)
Recalibration Period 2 years
Operation Temperature 0~ +40℃
Storage Temperature -30~+80℃
Power 100~240 V
Dimensions 245mm W, 105mm H, 320 mm D
Weight 5 kg



FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
