Product Details:
Place of Origin: CHINA
Brand Name: UC
Model Number: UC8130C-ITU48
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10pcs+per month

48Ch C Band ITU Wavelength Light Source Multimode Light Source Of Comb

Description
Product Name: 48Ch Multimode Light Source Device Package: TLA Butterfly
Optional Wavelength: C Band ITU Wavelength,C13 ~ C60 48 Channel Wavelength Range: 1529.55~1567.13 Nm
Wavelength Accuracy: ± 0.01nm Dimensions (Rack): 650 Mm W, 1100 Mm H, 650 Mm D
Weight: 25 Kg Connector Type: FC/APC
Highlight:

48Ch Multimode Light Source

,

C Band wavelength tunable laser

,

Comb Multimode Light Source UC

UC8130C-ITU48 48Ch C Band ITU Wavelength Light Source of Comb



Model # UC8130C-ITU48
Device Package TLA Butterfly
Optional Wavelength C band ITU wavelength,C13 ~ C60 48 channel
Wavelength Range 1529.55~1567.13 nm
Wavelength Accuracy ± 0.01nm
Total Output Power +23~-30 dBm(200mW~1uW)
Single Ch Power ≥12dBm
Connector Type FC/APC(Other Adaptor Can Be Customized)
Bandwidth@3 dB < 0.01 pm

Output Power Stability within 15mins

≤±0.01 dB

Single Ch Power Stability within 15mins

≤±0.005 dB

Output Power Stability within 8 hrs.

±0.1 dB
SMSR > 45 dB
Attenuation Range 0 ~ 60 dB
Attenuation Accuracy ±0.1dB
Power Monitoring Range +25 ~ -55 dBm
Relative Accuracy ±0.02dB
Operation Temperature 0~+40 ℃
Storage Temperature -30~+80 ℃
Dimensions (Rack) 650 mm W, 1100 mm H, 650 mm D
Weight 25 kg

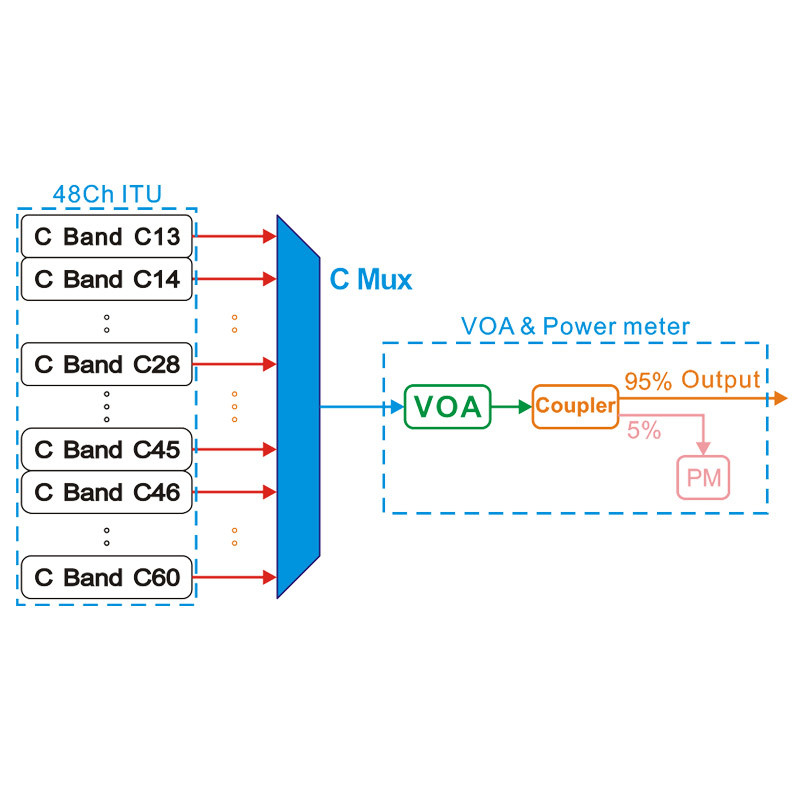

UC8130C-itu48 is a 48-channel ITU wavelength comb light source customized by UC Instrument. The light source system consists of 48 C-band ITU lasers, their drive and control circuits, a 1x48 channel Mux combiner, an optical attenuator and an optical power meter.



The light source system has the following characteristics:

1.48 channel ITU wavelength combined to one output, forming a comb light source;

2. The output power of the light source is adjustable, and the 48-channel single power can be fine-tuned;

3. The output of light source has power monitoring function;

4. The comb light source achieves equal power output at each wavelength;

5. 48 Channel light source is controlled by computer, which can be turned on and off at will;

6. 48 channel power can be adjusted separately, and the adjustment accuracy can reach ±0.01dB;
