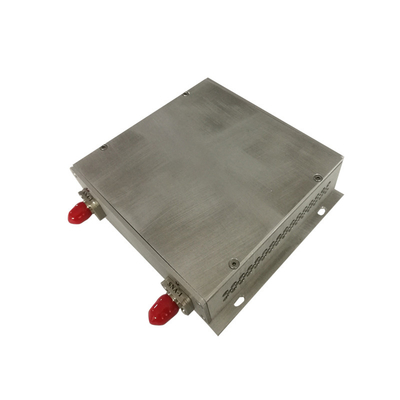

Tunable Laser Source Multimode Light Source Mini Module 1525.00 To 1568.00 nm

Tunable Laser Source Multimode Light Source Mini Module 1525.00 To 1568.00 nm
Tunable Laser Source Multimode Light Source Mini Module 1525.00 To 1568.00 nm

Large Image :  Tunable Laser Source Multimode Light Source Mini Module 1525.00 To 1568.00 nm

Product Details:
Place of Origin: CHINA
Brand Name: UC
Model Number: UC8712M
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15pcs+per month

Tunable Laser Source Multimode Light Source Mini Module 1525.00 To 1568.00 nm

Description
Product Name: Tunable Laser Source Model: UC8712M
Wavelength Range: 1525.00 To 1568.00 Nm Output Power: 13 DBm
Wavelength Resolution: 1.0 Pm Absolute Wavelength Accuracy: ±10 Pm, Typ. < 4 Pm
Highlight:

Tunable Laser Multimode Light Source UC

,

laser light source 1525.00nm

,

1568.00 nm Multimode Light Source

UC8712M Tunable Laser Source Mini Module



Model # UC8712M
Wavelength range 1525.00 to 1568.00 nm
Output Power 13 dBm
Wavelength resolution 1.0 pm
Absolute wavelength accuracy ±10 pm, Typ. < 4 pm
Relative wavelength accuracy ± 4 pm, Typ. ± 2 pm
Wavelength repeatability ±2 pm, Typ. ± 1 pm
Wavelength stability ≤ ± 2 pm
Tuning speed ≤0.002 s per step
Side-mode Suppression ratio ≥ 45 dB
Output optical interface PM, FC/APC or FC/PC connector
interface RS232 or USB
Output trig port BNC trig
Power 5.0V; 4.5A
Dimensions 120 mm W, 24mm H, 60 mm D
Weight 1.0 kg





UC8712M Tunable Laser Mini Module offer superior performance for the testing of DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It’s specifically designed for fast sweep fiber grating sensor testing.

UC8712M Mini module can be connected to a PC with a USB cable. They are highly accurate, powerful, compact-sized, fast-starting, and affordable tunable laser source systems which provide C band 1 or 2 Laser output options. Module control software is also included on purchase. The module can also be integrated into any requested products system with RS232 interface controls and an output triggered BNC port.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
