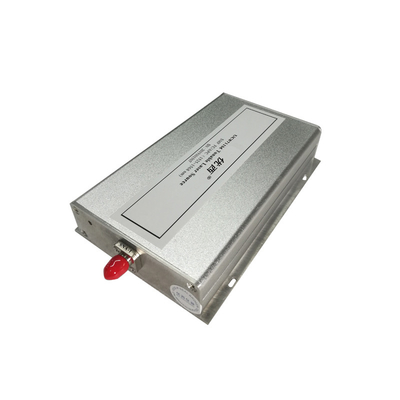

C Band Double Channel Multimode Fiber Light Source 1526.00 to 1566.00 nm

I'm Online Chat Now

C Band Double Channel Multimode Fiber Light Source 1526.00 to 1566.00 nm

C Band Double Channel Multimode Fiber Light Source 1526.00 to 1566.00 nm
C Band Double Channel Multimode Fiber Light Source 1526.00 to 1566.00 nm

Large Image :  C Band Double Channel Multimode Fiber Light Source 1526.00 to 1566.00 nm

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Model Number: U8710M-ITU
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15pcs+per month

C Band Double Channel Multimode Fiber Light Source 1526.00 to 1566.00 nm

Description
Product Name: Multimode Fiber Light Source Model: U8710M-ITU
Wavelength Range: 1526.00 To 1566.00 Nm Output Power: ≥12dBm
Wavelength Resolution: 0.4 Nm Polarization Properties Of ITU Light Source: Biasing Output, Slow Axis Alignment
Highlight:

Double Channel multimode fiber light source

,

multimode laser 1566nm

,

C Band multimode fiber light source

U8710M-ITU-C2 C Band Double Channel ITU Mini Module



Model # U8710M-ITU-C2
Wavelength range 1526.00 to 1566.00 nm
Output Power ≥12dBm
Wavelength resolution 0.4 nm
Absolute wavelength accuracy ±10 pm, Typ. < 5 pm
Relative wavelength accuracy ± 5 pm, Typ. ± 2 pm
Wavelength repeatability ±2 pm, Typ. ± 1 pm
Wavelength stability ≤ ± 2 pm
ITU wavelength output tuning speed ≤0.02 s
Polarization properties of ITU light source Biasing output, slow axis alignment
Power stability ± 0.01dB, 15min;±0.05,1 hour;±0.1 dB, 24 hours.
Power repeatability ± 0.05dB
Power linearity ± 0.3dB
Dual channel power consistency ±0.1dB @1550nm
Side-mode Suppression ratio ≥ 45 dB
Output optical interface PM, FC/APC
interface RS232
Power 5V4A
Dimensions 110 mm W, 30mm H, 90 mm D
Weight 1.0 kg





U8710M-ITU-C2 C band Double Channel Tunable Laser Mini Module offer superior performance for the testing of Optical communication components, and other general purpose fiber optic test and measurement applications.

UC8710M-ITU-C2 Mini module can be connected to a PC with a RS232 cable. They are highly accurate, powerful, compact-sized, fast-starting, and affordable tunable laser source systems which provide C band. Module control software is also included on purchase. The module can also be integrated into any requested products system with RS232 interface controls.
