O/C/L/CL Tunable Laser Source Sweep Modules With Wavelength Resolution 1.0 Pm

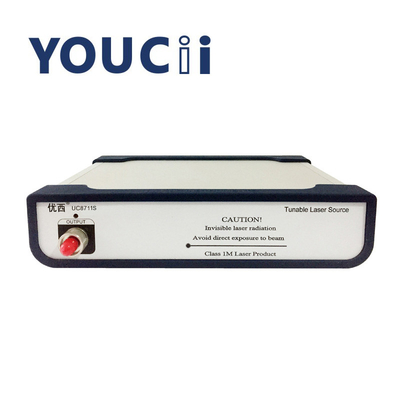

Large Image : O/C/L/CL Tunable Laser Source Sweep Modules With Wavelength Resolution 1.0 Pm

Product Details:

Place of Origin:	China
Brand Name:	YOUCII
Certification:	CU,IOS
Model Number:	UC8711

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	cartons
Delivery Time:	10 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 pcs+ per year

Contact Now

O/C/L/CL Tunable Laser Source Sweep Modules With Wavelength Resolution 1.0 Pm

Description

Wavelength Tuning Range (nm):	30~35 Nm	Tunable Band Range (nm):	1260~1360
Wavelength Resolution:	1.0 Pm	Absolute Wavelength Accuracy:	±10 Pm, Typ. ＜ 5 Pm
Relative Wavelength Accuracy:	± 5 Pm, Typ. ± 2 Pm	Side-mode Suppression Ratio:	≥ 45 DB
Dimensions:	235 Mm W, 55mm H, 165 Mm D
Highlight:	Tunable Laser Source , Tunable Laser Source 1.0Pm , 1360nm Tunable Laser Source

O/C/L/CL Tunable Laser Source Sweep Modules With Wavelength Resolution 1.0 Pm

UC8712 Tunable Laser Module offer superior performance for the testing of DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It’s specifically designed for fast sweep fiber grating sensor testing.
UC8712 module can be connected to a PC with a USB cable. They are highly accurate, powerful, compact-sized, fast-starting, and affordable tunable laser source systems which provide O band,C band, L band, or C + L band options. Module control software is also included on purchase. The module can also be integrated into any requested products system with RS232 interface controls and an output triggered BNC port.

Specification

Model #	UC8712
Band Option	O	C	L	CL
Center Wavelengths Available (nm)	1280/1310/1340	1550	1590	1570
Wavelength Tuning range (nm)	30~35 nm	40~45 nm	40~45 nm	80~85 nm
Tunable Band Range (nm)	1260~1360	1525~1568	1566~1610	1525~1610
Output Power	≥ 5dBm	≥ 13dBm	≥ 10dBm	≥ 7dBm
Wavelength resolution	1.0 pm
Absolute wavelength accuracy	±10 pm, Typ. ＜ 5 pm
Relative wavelength accuracy	± 5 pm, Typ. ± 2 pm
Wavelength repeatability	±2 pm, Typ. ± 1 pm
Wavelength stability	≤ ± 2 pm
Tuning speed	≤0.002 s per step
Power stability	± 0.01dB, 15min；±0.05,1 hour；±0.1 dB, 24 hours.
Power repeatability	± 0.05dB
Power linearity	± 0.3dB
Power Over wavelength Ripple	0.3dB typ., 0.5dB max.
Side-mode Suppression ratio	≥ 45 dB
Output optical interface	PM, FC/APC or FC/PC connector
Interface	RS232 or USB
Power	3.3 V; 4.5A
Dimensions	235 mm W, 55mm H, 165 mm D
Weight	1.0 kg

O/C/L/CL Tunable Laser Source Sweep Modules With Wavelength Resolution 1.0 Pm 0
