240V Programmable Optical Attenuator With 1310/1550nm Calibration Wavelength

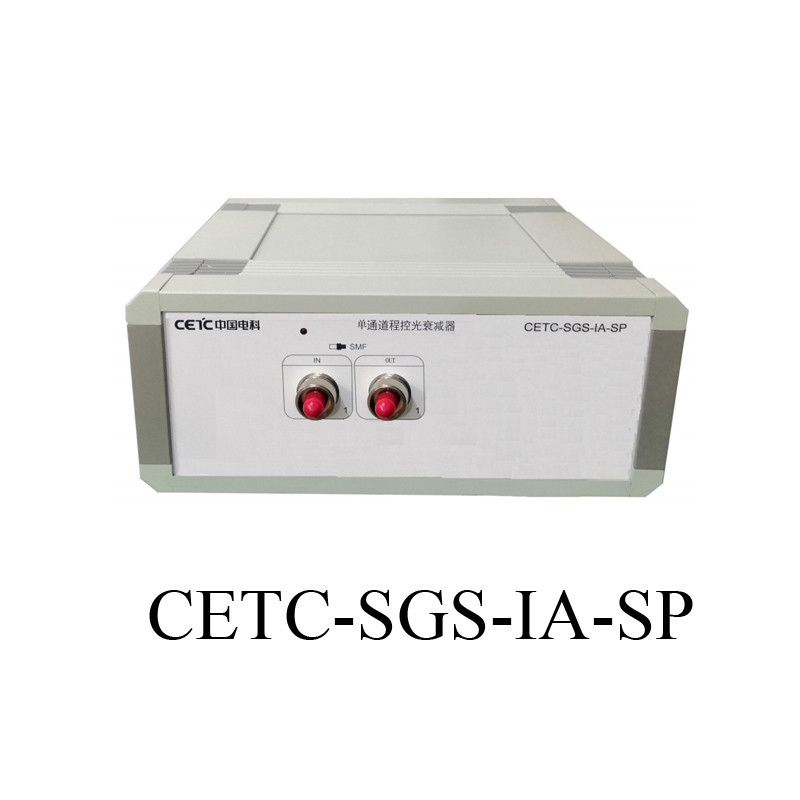

Large Image : 240V Programmable Optical Attenuator With 1310/1550nm Calibration Wavelength

Product Details:

Place of Origin:	CHINA
Brand Name:	G-LINK
Certification:	CU,IOS
Model Number:	CETC-SGS-IA-SP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	cartons
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	5pcs+per month

Contact Now

240V Programmable Optical Attenuator With 1310/1550nm Calibration Wavelength

Description

Optical Fiber Type:	Single Mode	Operating Wavelength Range:	1310/1490/1550/1625nm
Calibration Wavelength:	1310/1550nm	Speed Of Attenuation Regulation:	0.1~ 50 DB/s
Maximum Input:	+20dBm	Storage Temperature:	-30 ~ +80℃
Highlight:	240V Programmable Optical Attenuator , 1550nm Programmable Optical Attenuator

240V Programmable Optical Attenuator With 1310/1550nm Calibration Wavelength

Feature

1.The attenuation value and optical power output can be set quickly and accurately

2.Optical power control stability time ≤200ms;

3.Support one-key multi-channel setting and measurement at the same time,Save measuring time;

4.Built-in high precision optical power meter ensures power monitoring,Stability and accuracy of measurement;

5.Simple operation, multi-channel data preview at the same time, test state at a glance.

specification

Product model	CETC-SGS-IA-SP
Optical fiber type	Single mode
attenuation range	0 ~ 40 dB
Operating wavelength range	1310/1490/1550/1625nm
Calibration Wavelength	1310/1550nm
Insertion loss	≤ 1.2dB
Application Fiber Type	9/125 um Single mode
Connector Type	FC/UPC Connector
Attenuation accuracy	≤±0.1dB typ. (0 ~ 40 dB)
repeatability	≤±0.02 dB
Average power setting time	1~1000 ms
Power control follow - up stabilization time	100ms
Speed of attenuation regulation	0.1~ 50 dB/s
Return loss	＞40 dB
Maximum Input	+20dBm
operating temperature	0 ~ +40℃
storage temperature	-30 ~ +80℃
Power	100~240 V
