C/L/CL Band Multimode Light Source TLS With Output Power 12dBm

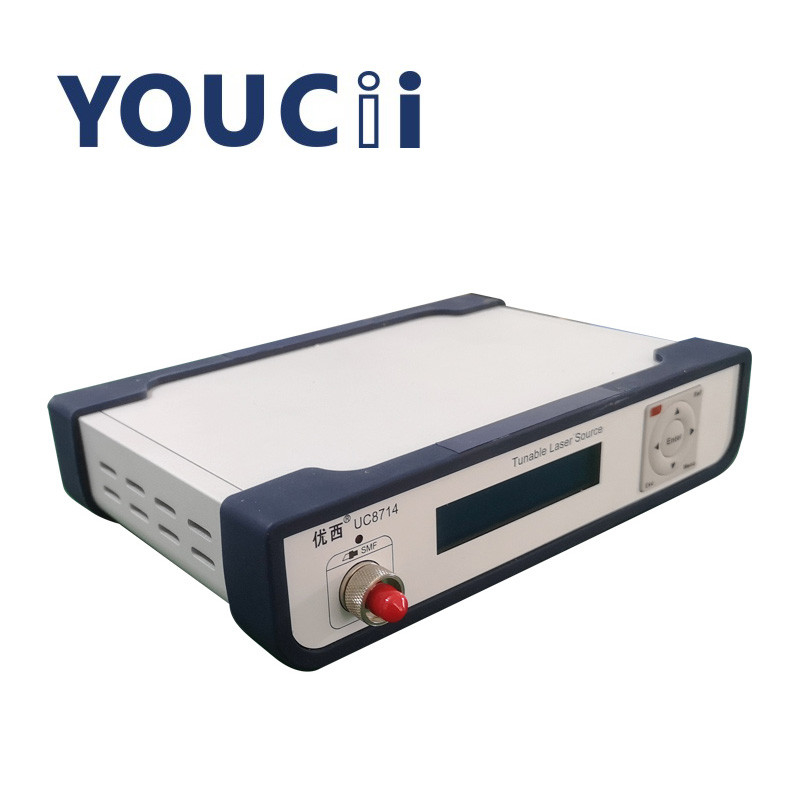

Large Image : C/L/CL Band Multimode Light Source TLS With Output Power 12dBm

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCii
Model Number:	UC8712Q

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15pcs+per month

Contact Now

C/L/CL Band Multimode Light Source TLS With Output Power 12dBm

Description

Product Name:	Multimode Light Source	Model:	UC8712Q
Wavelength Range:	1526.00 To 1568.00 Nm	Output Power:	≥12dBm
Wavelength Resolution:	1.0 Pm	Sweep Speed:	≤25us Per Step(40,000 Step/s)
Interface:	RS232 Or USB	Dimensions:	235 Mm W, 55mm H, 165 Mm D
Highlight:	Multimode Light Source TLS , Multimode Light Source 12dBm

UC8712Q C/L/CL Band Multimode Light Source TLS With Output Power ≥12dBm

Specifications

Model #	UC8712Q
Wavelength range	1526.00 to 1568.00 nm
Output Power	≥12dBm
Wavelength resolution	1.0 pm
Absolute wavelength accuracy	±10 pm, Typ.＜ 4 pm
Relative wavelength accuracy	± 5 pm, Typ. ± 2 pm
Wavelength repeatability	±2 pm, Typ. ± 1 pm
Wavelength stability	≤ ± 2 pm
Sweep speed	≤25us per step(40,000 step/s)
Power stability	± 0.01dB, 15min；±0.05,1 hour；±0.1 dB, 24 hours.
Power repeatability	± 0.05dB
Power linearity	± 0.3dB
Power Over wavelength Ripple	0.3dB typ., 0.5dB max.
Side-mode Suppression ratio	≥ 45 dB
Output optical interface	PM, FC/APC or FC/PC connector
interface	RS232 or USB
Output trig port	BNC trig
Power	3.3 V; 4.5A
Dimensions	235 mm W, 55mm H, 165 mm D
Weight	1.0 kg

UC8712Q Tunable Laser Module offer superior performance for the testing of DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It’s specifically designed for fast sweep fiber grating sensor testing.

UC8712Q Module can be connected to a PC with a USB cable. They are highly accurate, powerful, compact-sized, fast-starting, and affordable tunable laser source systems which provide O band,C band options. Module control software is also included on purchase. The module can also be integrated into any requested products system with RS232 interface controls and an output triggered BNC port.

C/L/CL Band Multimode Light Source TLS With Output Power 12dBm 0

The power supply requirements
The UC8712Q complies with overvoltage Level II regulations. The operating voltage is 100 ~ 240V AC voltage, the frequency range is 48 ~ 66Hz, the operating voltage is 115V, the maximum consumption current is 230mA; When the operating voltage is 230V, the maximum consumption current is 120mA.
