Product Details:
|
| Attenuator Range: | 0~35 DB（40dB Type） | Model: | U8744 |
|---|---|---|---|
| Connector Type: | FC/APC (Other Adaptor Can Be Customized) | Repeatability: | ±0.05 DB |
| Settling Time: | 200ms | Attenuation Transition Speed: | 0.1 ~ 35 DB/s |
| Highlight: | Optically Controlled Optical Attenuators,Multimode Optically Controlled Optical Attenuators |
||

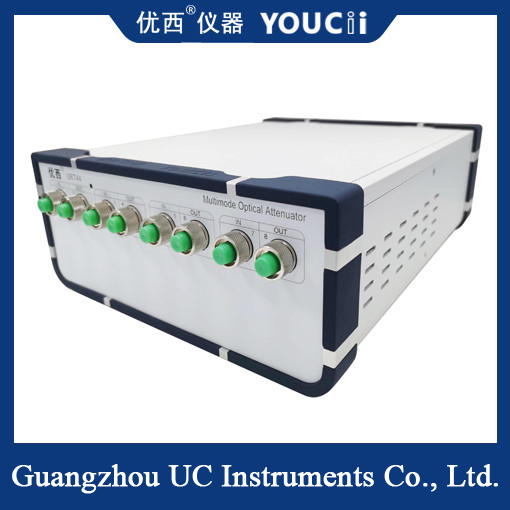

Multimode Optically Controlled Optical Attenuators Can Be Cascaded
Active optical module/Optical Device Test:
In the multi-channel error measurement of optical transceiver module, parallel data measurement is realized.
In the sensitivity measurement of optical receiving module, it provides parallel, fast and accurate optical power input;
200ms optical power control stability time, greatly improve the test efficiency.
Optical communication network integration test:
Test network transmission performance and network management functions in optical communication network integration.
Product Features
The optical attenuation and optical power output can be set quickly and accurately, and the optical power control stability time is less than 200 ms.
Multi-channel attenuator is set at the same time, and multiple ports are measured simultaneously, which saves a lot of measurement time;
Built-in high-precision optical power meter ensures the stability and accuracy of power monitoring;
Simple operation, intuitive graphical user interface, multi-channel data preview, test status at a glance.
Small size, compact structure, two 4-channel devices cascaded, can be identified as an 8-channel device to use.
Specification
| Model # | U8744 |
| Attenuator Range | 0~35 dB(40dB Type) |
| Calibration Wavelength (Option) | 850 nm |
| Insertion Loss | ≤ 1.8 dB Type 1.5dB |
| Fiber Type | 50/125um, 62.5/125um MMF |
| Connector Type | FC/UPC Connector |
| Attenuation Accuracy |
± 0.20 dB (0 ~ 20 dB), ± 0.30 dB (20 ~ 35 dB) ± 0.05 dB (0 ~ 30 dB With Power control) |
| Repeatability | ±0.05 dB |
| Averaging time of monitor PM | 2~1000 ms |
| Settling Time | 200ms |
| Attenuation Transition Speed | 0.1 ~ 35 dB/s |
| Return Loss | > 25 dB |
| Communication Interface | RS232, USB, RJ45 Control by PC |
| Maximum safe input power | +17dBm |
| Recalibration Period | 2 years |
| Operation Temperature | 0～ +40℃ |
| Storage Temperature | -30～+80℃ |
| Power | 100~240 V |
| Dimensions | 245mm W, 105mm H, 320 mm D |
| Weight | 5 kg |
