Laser Scanning Spectrometer Wavelength Range For 1525.00 ~ 1568.00nm

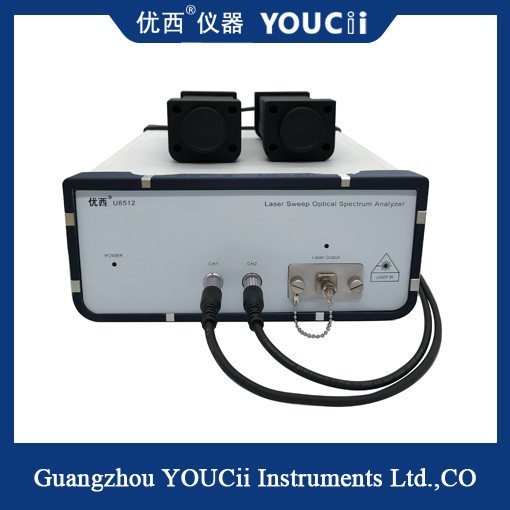

Large Image : Laser Scanning Spectrometer Wavelength Range For 1525.00 ~ 1568.00nm

Product Details:

Place of Origin:	China
Brand Name:	YOUCii
Certification:	CU,IOS
Model Number:	U8512

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15 pcs+per month

Contact Now

Laser Scanning Spectrometer Wavelength Range For 1525.00 ~ 1568.00nm

Description

Wavelength Range:	1525.00 To 1568.00 Nm	Wavelength Resolution:	1.0 Pm
Tuning Speed:	≤ 2 Ms Per Step	Power Linearity:	± 0.3 DB
Relative Noise Intensity:	Typical Value -135 DB	Communication Interface:	USB/RS232 Port
Highlight:	RS232 Laser Scanning Spectrometer , 1568.00nm Laser Scanning Spectrometer

Laser Scanning Spectrometer Wavelength Range For 1525.00 ~ 1568.00nm

The U8512 laser scanning spectrum analyzer is a passive device testing and spectrum analysis system controlled by PC. It is mainly used for coarse WDM components, high-density WDM components, Interleaver, AWG, WSS, OPM, DPSK components and other general optical fiber optical measurement and application. The tunable laser light source is integrated in the system, and with the optical power meter, it can be a tunable laser light source test system platform with high wavelength accuracy and fast scanning function.

specification

Model	U8512C+U88201
Adjustable laser light source
Wavelength range	1525.00 ~ 1568.00 nm
Output power	13 dBm
Wavelength resolution	1.0 pm
Absolute wavelength accuracy	±10 pm, Typ. ±5 pm
Relative wavelength accuracy	± 5 pm, Typ. ±2 pm
Wavelength repeatability	± 3 pm, typ. ±1 pm
Wavelength stability	±5 pm (typ., 24 hrs at Constant Temperature)
Tuning speed	≤ 2 ms per step
Power stability	±0.005dB (15Min) ±0.05 dB ( 24 hours)
Power repeatability	± 0.05 dB
Power linearity	± 0.3 dB
Power flatness	0.3 dB; The typical value is 0.05dB.
Edge mode rejection rate	≥ 40 dBm
Relative noise intensity	Typical value -135 dB
Optical power meter
Wavelength range	850 nm to 1625 nm
Power measurement range	+5 dBm to -85 dBm
Power accuracy	< ± 4%
Power repeatability	< 0.1 dB
Scanning function: Equipped with DWDM/Isolator/GFF device scanning software
Scanning mode	Fast tunable laser spectral scanning
Resolution	1 pm
precision	5 pm
Power display	Peak power display
Center wavelength function	Center wavelength and 3dB bandwidth display
Reference function	Reference value test

Power adapter	AC 100 ~ 240 V , 48 - 66 Hz,100 VA max.
Display interface	PC control interface
Optical output interface	FC/PC connector
Communication interface	USB/RS232 port
Storage temperature	−40°C ~ +80°C
Operating temperature	0°C ~ +45°C
Overall dimension	245 mm W, 105 mm H, 320 mm D
weight	3.0kg

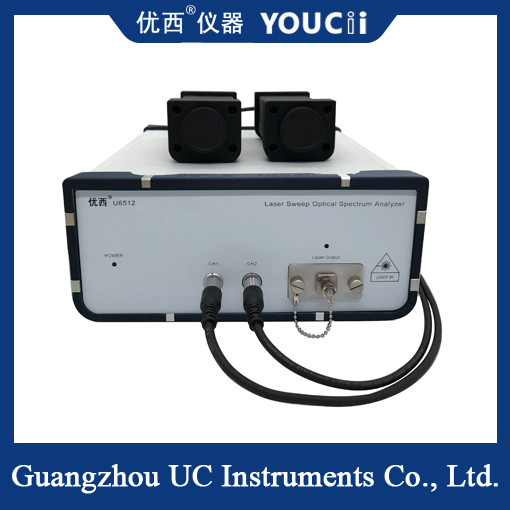

Laser Scanning Spectrometer Wavelength Range For 1525.00 ~ 1568.00nm 0
