Product Details:
|
| Attenuator Range: | 0~35 DB（40dB Type） | Calibration Wavelength (Option): | 850 Nm (908/980 Nm Selectable) |
|---|---|---|---|
| Insertion Loss: | ≤ 1.8 DB Type 1.5dB | Averaging Time Of Monitor PM: | 2~1000 Ms |
| Attenuation Transition Speed: | 0.1 ~ 33 DB/s | Maximum Safe Input Power: | +27dBm |
| Highlight: | Multi Mode Optical Attenuator Channels,Multi Channel Optical Attenuator Channels |
||

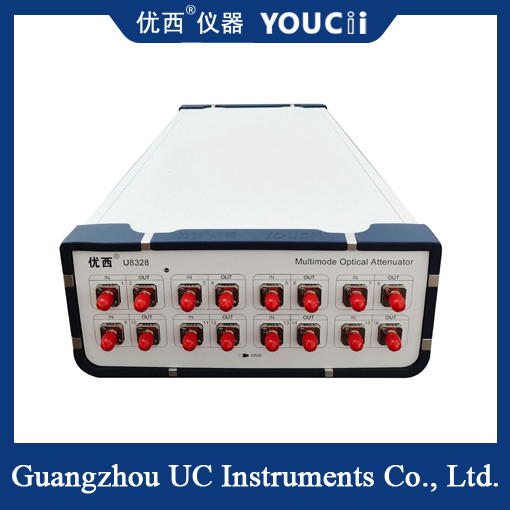

Multi-Channel Multi-Mode Optical Attenuator Channels Run Synchronously
The optical attenuation and optical power output can be set quickly and accurately, and the optical power attenuation stabilization time is less than 200 ms.
Multi-channel attenuator is set at the same time, and multiple ports are measured simultaneously, which saves a lot of measurement time;
Built-in power monitoring ensures the stability and accuracy of light attenuation;
Simple operation, intuitive graphical user interface, multi-channel data preview, test status at a glance.
Small size, compact structure.
| Model # | U8324 / U8328 |
| Attenuator Range | 0~35 dB(40dB Type) |
| Calibration Wavelength (Option) | 850 nm (908/980 nm selectable) |
| Insertion Loss | ≤ 1.8 dB Type 1.5dB |
| Fiber Type | 50/125um, 62.5/125um MMF |
| Connector Type | FC/UPC Connector |
| Attenuation Accuracy | ± 0.10 dB (0 ~ 30 dB) |
| Repeatability | ±0.10 dB |
| Averaging time of monitor PM | 2~1000 ms |
| Settling Time | 200ms |
| Attenuation Transition Speed | 0.1 ~ 33 dB/s |
| Return Loss | > 25 dB |
| Communication Interface | RS232, USB, RJ45 Control by PC |
| Maximum safe input power | +27dBm |
| Recalibration Period | 2 years |
| Operation Temperature | 0～ +40℃ |
| Storage Temperature | -30～+80℃ |
| Power | 100~240 V |
| Dimensions | 245mm W, 105mm H, 320 mm D |
| Weight | 5 kg |
