Product Details:
|
| Calibration Wavelength (Option): | 850 Nm (908/980 Nm Selectable) | Fiber Type: | 50/125um, 62.5/125um MMF |
|---|---|---|---|
| Connector Type: | FC/UPC Connector | Attenuation Transition Speed: | 0.1 ~ 33 DB/s |
| Operation Temperature: | 0～ +40 ℃ | Power: | 100~240 V |
| Highlight: | Accuracy Multi Mode Optical Attenuator,Multi Mode Optical Attenuator Power Monitoring,980nm Multi Mode Optical Attenuator |
||

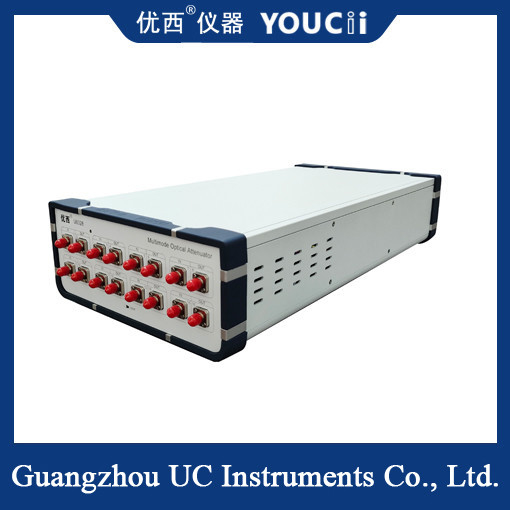

Multi-Mode Optical Attenuator Built-In Power Monitoring Accuracy
The optical attenuation and optical power output can be set quickly and accurately, and the optical power attenuation stabilization time is less than 200 ms.
Multi-channel attenuator is set at the same time, and multiple ports are measured simultaneously, which saves a lot of measurement time;
Built-in power monitoring ensures the stability and accuracy of light attenuation;
Simple operation, intuitive graphical user interface, multi-channel data preview, test status at a glance.
Small size, compact structure.
A multi-mode optical attenuator is a device used to reduce the intensity of the optical signal in a multimode fiber. It is often used to adjust the power of the optical signal to maintain the stability of the system, or to provide repeatable results during testing and measurement. Multimode optical attenuators can be implemented in a number of ways, including using effects such as light absorption, scattering, or interference.
| Model # | U8324 / U8328 |
| Attenuator Range | 0~35 dB(40dB Type) |
| Calibration Wavelength (Option) | 850 nm (908/980 nm selectable) |
| Insertion Loss | ≤ 1.8 dB Type 1.5dB |
| Fiber Type | 50/125um, 62.5/125um MMF |
| Connector Type | FC/UPC Connector |
| Attenuation Accuracy | ± 0.10 dB (0 ~ 30 dB) |
| Repeatability | ±0.10 dB |
| Averaging time of monitor PM | 2~1000 ms |
| Settling Time | 200ms |
| Attenuation Transition Speed | 0.1 ~ 33 dB/s |
| Return Loss | > 25 dB |
| Communication Interface | RS232, USB, RJ45 Control by PC |
| Maximum safe input power | +27dBm |
| Recalibration Period | 2 years |
| Operation Temperature | 0～ +40℃ |
| Storage Temperature | -30～+80℃ |
| Power | 100~240 V |
| Dimensions | 245mm W, 105mm H, 320 mm D |
| Weight | 5 kg |
