Product Details:
|
| Operation Mode: | Power Setting Mode | Resolution: | 0.001dB |
|---|---|---|---|
| Averaging Time Of Monitor PM: | 2 Ms ~ 1 S | Recalibration Period: | 2 Years |
| Maximum Safe Input Power: | +5dBm | Dimensions: | 235 Mm W, 55 Mm H, 320 Mm D |
| Highlight: | 100ms Optical Power Meter,2-Channel Optical Attenuator |
||

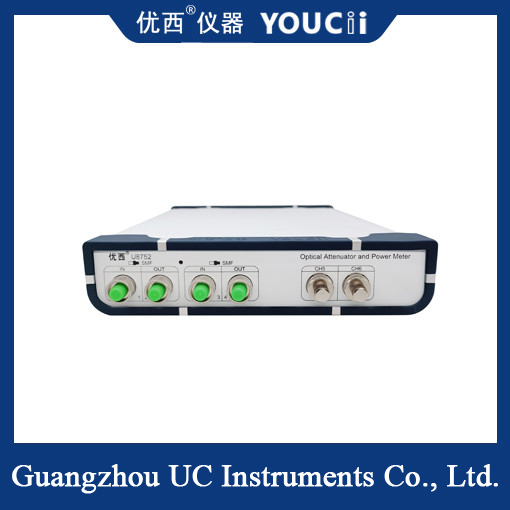

2-Channel Optical Attenuator And Optical Power Meter 100ms Stabilization Time
U8752 dual channel optical attenuator and optical power meter is a powerful test equipment, its characteristics are mainly reflected in the following aspects:
First, the U8752 is able to set optical attenuation and optical power output quickly and accurately. This feature enables it to provide accurate and reliable data support in optical network testing, equipment calibration, and performance evaluation of optical communication systems.
Secondly, the optical power control stabilization time is less than or equal to 100 milliseconds, ensuring the stability and accuracy of the measurement results. This feature is particularly important in applications that require fast response and accurate measurement.
In addition, the dual-channel design enables the U8752 to measure the optical power and optical attenuation of both channels at the same time, which greatly improves the test efficiency. This design is a great convenience for optical network testers who need to monitor multiple channels at the same time.
Specification
| Model # | U8751 / U8752 | |
| Operation Mode | Attenuation Setting mode | Power Setting mode |
| Range | 0~40 dB | +5 ~ -70dBm |
| Resolution | 0.01 dB | 0.001 dB |
| Repeatability |
±0.02 dB (0 ~ 20 dB) ±0.05 dB (20~40 dB) |
±0.02 dB |
| Calibration Wavelength | 1270 / 1310 / 1490 /1550 /1610 nm | |
| Fiber Type | 9/125 um single mode | SMF and MMF |
| Connector Type | FC/UPC Connector | FC/SC/LC Option |
| Insertion Loss | ≤1.5 dB | |
| Accuracy (With Optical Power Control) |
± 0.02 dB (0 ~ 20 dB) ±0.05 dB (20~40 dB) |
±0.02 dB |
| Averaging time of monitor PM | 2 ms ~ 1 s | |
| Settling Time | 100ms | |
| Attenuation Transition Speed | 0.1 ~ 50 dB/s | |
| Return Loss | > 45 dB | |
| Maximum safe input power | +20dBm | +5dBm |
| Recalibration Period | 2 years | |
| Operation Temperature | 0～ +40℃ | |
| Storage Temperature | -30～+80℃ | |
| Power | 100~240 V | |
| Dimensions | 235mm W, 55mm H, 320 mm D | |
| Weight | 3.0 kg | |
