Product Details:
|
| Attenuation Range: | 0 ~ 35 DB | Connector Type: | FC/UPC Connector |
|---|---|---|---|
| Average Power Setting Time: | 2 ~1000 Ms | Return Loss: | ＞25 DB |
| Repeatability: | ≤±0.05 DB | Calibration Cycle: | 2 Years |
| Highlight: | Optically Controlled Optical Attenuators,Parallel Data Measurement Optical Attenuators |
||

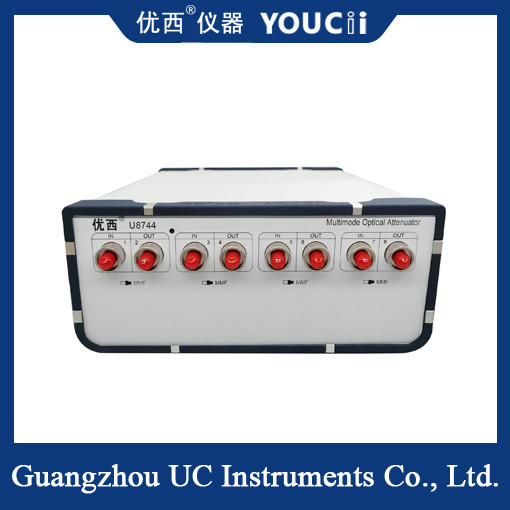

Optically Controlled Optical Attenuators Enable Parallel Data Measurement
Application of U8744 attenuator:
Active optical module/Optical Device Test:
In the multi-channel error measurement of optical transceiver module, parallel data measurement is realized.
In the sensitivity measurement of optical receiving module, it provides parallel, fast and accurate optical power input;
200ms optical power control stability time, greatly improve the test efficiency.
Optical communication network integration test:
Test network transmission performance and network management functions in optical communication network integration.
Peculiarity
1.The optical attenuation and optical power output can be quickly and accurately set. The optical power control stability time is less than 200 ms.
2. Multi-channel attenuator is set at the same time, and multiple ports are measured at the same time, saving a lot of measurement time.
3. Built-in high-precision optical power meter ensures the stability and accuracy of power monitoring.
4. Small size, compact structure, simple operation, intuitive graphical user interface, multi-channel data preview, test status at a glance.
Specification
| Models | U8744/U8748(multimode) | |
| Attenuation range | 0 ~ 35 dB | |
|
Calibration wavelength/operating wavelength range (up to 12 wavelength combinations can be selected) |
850/908 nm |
|
| Insertion loss | ≤ 1.8 dB | |
| Fiber type | 50/125um, 62.5/125um self-adaptation | |
| Connector type | FC/UPC Connector | |
| Attenuation accuracy | ≤±0.20dB (0 ~ 20 dB) | |
| Repeatability | ≤±0.05 dB | |
| Average power setting time | 2 ~1000 ms | |
|
Power control follow-up stability time |
200ms | |
| Attenuation control speed | 0.1~ 35 dB/s | |
| Return loss | ＞25 dB | |
| Maximum input power | +17dBm | |
| Calibration cycle | 2 years | |
| Operating temperature | 0 ~ +40℃ | |
| Storage temperature | -30 ~ +80℃ | |
| Power supply | 100~240 V | |
| Product size | 245mm W, 105mm H, 320mm D | |
