Product Details:
|
| Interface: | RS232 Or USB | Application Fiber Type: | Standard SM |
|---|---|---|---|
| Power Range: | + 5 ~ -70dBm | Attenuator Range: | 0~40 DB |
| Warranty: | 1 Year | Sensor Element: | InGaAs |
| Operation Temperature: | 0～ +40℃ | Attenuation Accuracy: | +/- 0.5 DB |
| Highlight: | 12 Wavelength Calibration Attenuator,4 Channel Optical Attenuator,12 Wavelength Calibration Optical Attenuator |
||

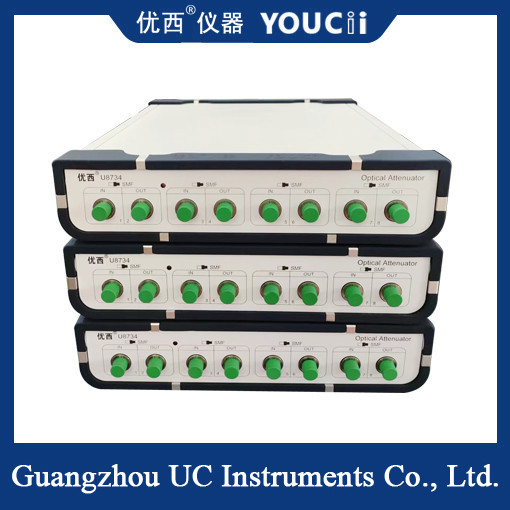

4 Channel Optically Controlled Optical Attenuator 12 Wavelength Calibration
The 4-channel optical-controlled optical attenuator is a device widely used in the field of optical communication. It has the characteristics of multi-channel design, precise control and high reliability, and can meet the test requirements of complex optical fiber communication systems.
The 4-channel optically controlled optical attenuator integrates four independent optical attenuator channels, each of which can be adjusted independently for optical signal attenuation. This design not only saves equipment footprint, but also significantly improves test data throughput and test rate. By precisely controlling the attenuation of optical signal in each channel, the optical signal transmission under different transmission conditions can be simulated, which provides strong support for system optimization.
Specification
| Model # | U8734 | U8738 |
| Attenuator Range | 0~40 dB | |
| Calibration Wavelength |
1270 / 1286 / 1290 / 1295 / 1300 / 1305 / 1310 / 1330 / 1510 / 1530 / 1550 / 1570 nm |
|
| Insertion Loss | ≤1.5 dB | |
| Fiber Type | 9/125 um single mode | |
| Connector Type | FC/UPC Connector | |
| Attenuation Accuracy |
≤ ± 0.1 dB (0 ~ 25 dB) ≤ ± 0.02 dB (0 ~ 25 dB With Power control) |
|
| Repeatability | ≤ ±0.02 dB | |
| Averaging time of monitor PM | 1~1000ms | |
| Settling Time | 100ms | |
| Attenuation Transition Speed | 0.1 ~ 50 dB/s | |
| Return Loss | > 45 dB | |
| Maximum safe input power | +20dBm | |
| Communication Interface | RS232, USB,RJ45 Control by PC | |
| Recalibration Period | 2 years | |
| Operation Temperature | 0～ +40℃ | |
| Storage Temperature | -30～+80℃ | |
| Power | 100~240 V | |
| Dimensions | 235mm W, 55 mm H, 320 mm D | |
| Weight | 3.0 kg | |
Application field
Optical fiber communication system test: In the construction process of optical fiber communication system, the 4-channel optical controlled optical attenuator can be used to test the attenuation characteristics of different optical fiber transmission paths to ensure the stability and reliability of system performance.
Optical fiber device development: In the development and production process of optical fiber devices, the equipment can be used to evaluate the loss characteristics of the device, test the transmission performance of the device, etc.
Optical communication teaching experiment: In the optical communication teaching experiment, through practical operation and experimental verification, students can have a deeper understanding of the principle and technology of optical communication, and cultivate practical ability and innovative spirit.
