10G Optical Oscilloscope Digital Communication Analyzer

I'm Online Chat Now

10G Optical Oscilloscope Digital Communication Analyzer

10G Optical Oscilloscope Digital Communication Analyzer
10G Optical Oscilloscope Digital Communication Analyzer

Large Image :  10G Optical Oscilloscope Digital Communication Analyzer

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9110A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 7pcs+per month

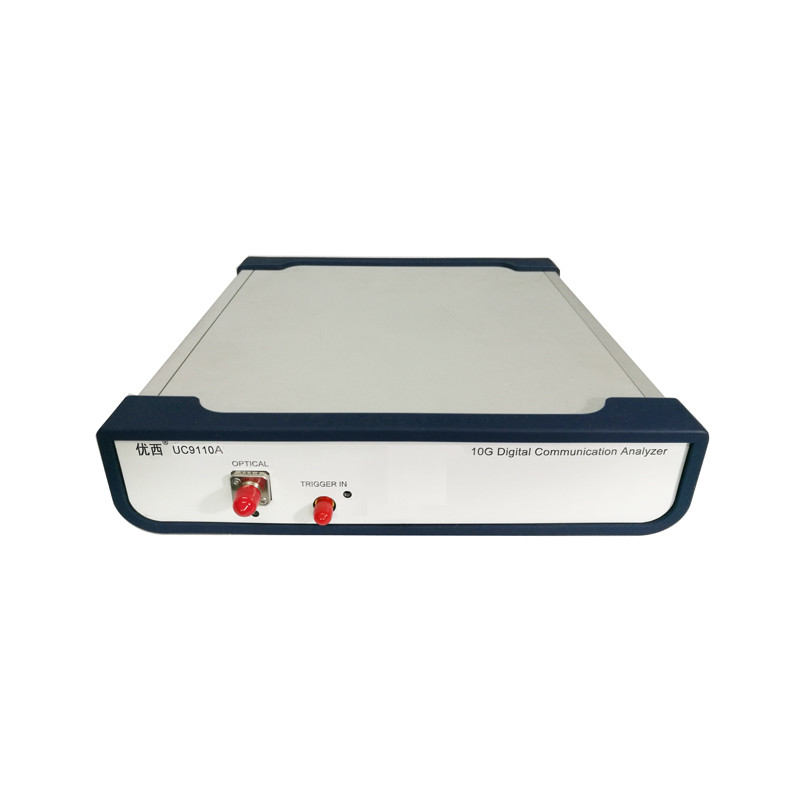

10G Optical Oscilloscope Digital Communication Analyzer

Description
Product Name: 10G Optical Oscilloscope Standard Rate: 1.25G ~30G
Display Characteristics Image Resolution: 1024×768 Pixels Signal Acquisition Mode: Sampling (Normal), Envelope, Average
Number Of Sampling Channels: 1~4 Channel RMS Noise (max): 0.5mV(10GHz),1.0mV(30GHz)
Highlight:

10G Optical Oscilloscope

,

Digital Communication Analyzer

,

Optical Oscilloscope Digital

U9110A 10G Digital Communication Analyzer



Digital communication analysis solutions

UC9110A/UC9110A-2 / UC9110A-4 communication signal analyzer designed for high performance communication applications is an ideal tool for data network and communication network components, transceiver components, transmission system design evaluation, manufacturing and testing.

UC9110A/UC9110A-2 / UC9110A-4 measurement results are not only raw data, but also histogram with time and amplitude, mask test, statistical test, etc. It provides a set of test Settings for communication indicators, including interval period, rise time, fall time, crossover percentage, upshot, downshot, extinction ratio, jitter, and amplitude measurement.

In addition, SDH/SONET, Gigabit Ethernet mask tests, and other standard single compliance tests.



Specification

standard rate 1.25G ~30G
Measurement accuracy Mask margin (Margin) ±3 %
Display Characteristics Image Resolution 1024×768 pixels
digital measurement system Support 1~2 optical channel measurement, refresh optional measurement 3 times per second
Signal acquisition mode Sampling (Normal), Envelope, Average
RMS noise 0.25mV (10GHz) ,0.5mV(30Ghz)
Number of sampling channels 1~4 Channel
Vertical System Conversion Time Depending on the number of sampling channels, 8.75ps (30GHz)
RMS noise (max) 0.5mV(10GHz),1.0mV(30GHz)
Horizontal system Waveform zoom in and zoom out observation time base 0.5ps/div to 1ms/div
Time interval accuracy (jitter mode) 0.25ps(10GHz), 0.0625ps(30GHz)
Trigger system External clock source 100mV,155~2500MHz(10GHz), 155~622MHz(30Ghz)
Trigger level range ±1.0V
trigger input range ±1.5V
Trigger cutoff ±1.5V:5ms ~100ms
Power (external power adapter) 50Hz,5V,3A,6W
Ambient temperature, relative humidity Operation Temperature-20 to ~50℃ , Humidity 20% to ~80%
storage Temperature -40 to ~85℃ , Humidity 5% to ~90%
Size 235W×55H×255L (mm)
Weight <2Kg
Communication, network management interface RJ45; support 10/100Mbps Ethernet

Function introduction

· Automatic communication measurement

· Wide range bandwidth (9Gbps to 12.5Gbps, support 155-2500mhz clock trigger source)

· Automatic ITU/ANSI Mask test

- User operation and graphical display interface based on PC Ethernet communication software

· Modular structure

· Fast sampling rate

· Excellent signal fidelity (Jitter<0.1ps RMS-typical)

· FramsScan acquisition mode
