Product Details:
|
| Product Name: | Optical Sampling Oscilloscop | Standard Rate: | 1.2442/1.25/2.4884/2.5/6.0/9.953/10.3125/10.709/11.3 Gbps |
|---|---|---|---|
| Display Characteristics Image Resolution: | 1024×768 Pixels | RMS Noise (max): | 0.5mV |
| Vertical Resolution: | 14 Bits | Trigger System External Clock Source: | 100mV,155~2500MHz |
| Highlight: | Multi Mode optical sampling oscilloscope,Optical digital oscilloscope,optical sampling oscilloscope 10G |
||

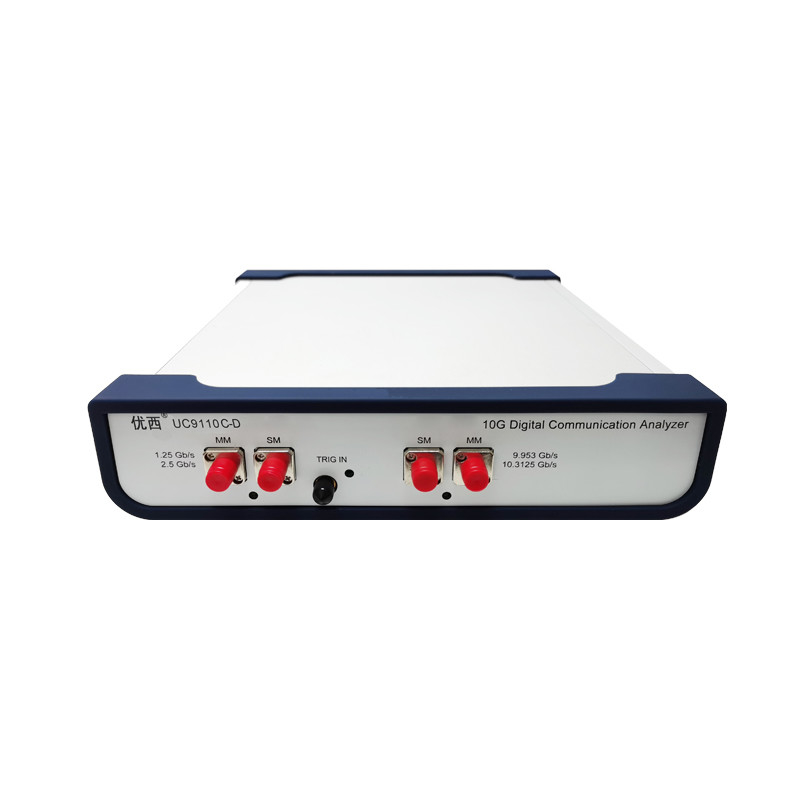

U9110C-D 10G Full-rate single-mode/multi-mode optical oscilloscope
| Model | U9110C-D |
| standard rate | 1.2442/1.25/2.4884/2.5/6.0/9.953/10.3125/10.709/11.3 Gbps |
| Measurement accuracy Mask margin (Margin) | ±3 % |
| Display Characteristics Image Resolution | 1024×768 pixels |
| Digital measurement system | Support 1 optical channel measurement, refresh optional measurement 3 times per second |
| Signal acquisition mode | Sampling (Normal), Envelope, Average |
| RMS noise | 0.25mV |
| Number of sampling channels | 4: 10G low-speed single-mode/multi-mode, 10G high-speed single-mode/multi-mode |
| Vertical System Conversion Time | Depending on the number of sampling channels |
| Vertical resolution | 14 bits |
| RMS noise (max) | 0.5mV |
| Horizontal system Waveform zoom in and zoom out observation time base | 0.5ps/div to 1ms/div |
| Time interval accuracy (jitter mode) | 0.25ps |
| Trigger system External clock source | 100mV,155~2500MHz |
| Trigger level range | ±1.0V |
| trigger input range | ±1.5V |
| Trigger cutoff | ±1.5V:5ms ~100ms adaptive |
| Communication, network management interface | RJ45；support 10/100Mbps Ethernet |
| Power (external power adapter) | 50Hz,5V,3A,6W |
| Ambient temperature, relative humidity Operation | Temperature-20 to ~50℃ , Humidity 20% to ~80% |
| Storage | Temperature-40℃ to +85℃, Humidity 5% to 90% |
| Size Weight | 235W×55H×255L (mm),＜2Kg |
U9110C-D is 10G full speed, supports single mode/multi-mode oscilloscope, is the latest digital communication analysis solution launched by U9110C-D. It provides an ideal measuring tool for optical communication device manufacturing.
U9110c-d DCA measurement results are not only raw data, but also histograms with time and amplitude, Mask tests, statistical tests, etc. It provides a set of communication indicator test Settings, including interval period, rise time, fall time, cross percentage, extinction ratio, jitter, and amplitude measurement. Also includes SDH/SONET, Gigabit Ethernet Mask tests, and other standard single compliance tests.
