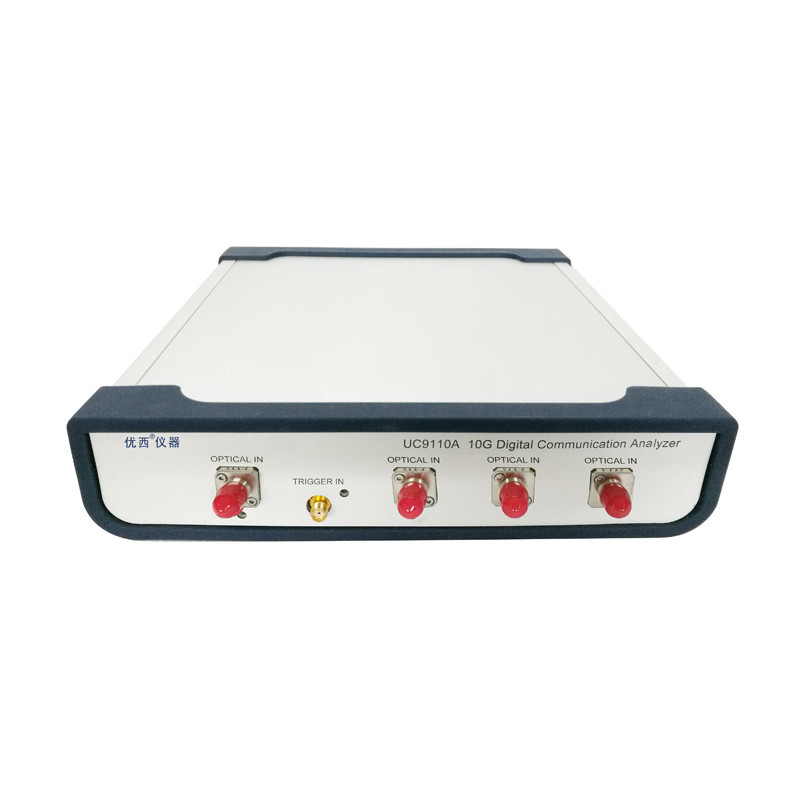

10G Optical Oscilloscope Digital Low Rate DCA Communication Analyzer

10G 	Optical Oscilloscope Digital Low Rate DCA Communication Analyzer
10G 	Optical Oscilloscope Digital Low Rate DCA Communication Analyzer

Large Image :  10G Optical Oscilloscope Digital Low Rate DCA Communication Analyzer

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9110A-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 pcs+per month

10G Optical Oscilloscope Digital Low Rate DCA Communication Analyzer

Description
Features: Optical Port Product Name: Optical Oscilloscope
Model: UC9110A-4 Equipment Name: 10G Low Rate DCA
Filter: 1.2442/1.25/2.4884/2.5Gbps Brand: UC
Highlight:

10G Optical Oscilloscope

,

10G communication signal analyzer

,

Low Rate DCA Optical Oscilloscope

U9110A-4 10G Digital Communication Analyzer



Digital communication analysis solutions

U9110A/U9110A-2 / U9110A-4 communication signal analyzer designed for high performance communication applications is an ideal tool for data network and communication network components, transceiver components, transmission system design evaluation, manufacturing and testing.

U9110A/U9110A-2 / U9110A-4 measurement results are not only raw data, but also histogram with time and amplitude, mask test, statistical test, etc. It provides a set of test Settings for communication indicators, including interval period, rise time, fall time, crossover percentage, upshot, downshot, extinction ratio, jitter, and amplitude measurement.

In addition, SDH/SONET, Gigabit Ethernet mask tests, and other standard single compliance tests.



Model Equipment Name Main Performance Index  Features Remarks
U9110A 10G low rate DCA Filter: 1.2442/1.25/2.4884/2.5Gbps Optical port
U9110B 10G high-speed DCA Filter: 6.2/9.953/10.3125/10.709/11.3/14.025Gbps Optical port
U9110C 10G full rate DCA Compatible with all rates of the above A/B models Dual optical ports
U9110D 10G 4-channel high-speed DCA Filter: 9.953/10.3125/10.709/11.3Gbps 4 optical ports
U9110E 10G optoelectronic dual port DCA Filter: 9.953/10.3125/10.709/11.3Gbps One light and one electrical port
U9130A 30G Optical Oscilloscope Filter: 25.0/25.78/26.56/27.95/28.05Gbps Optical port



Function introduction

· Automatic communication measurement

· Wide range bandwidth (9Gbps to 12.5Gbps, support 155-2500mhz clock trigger source)

· Automatic ITU/ANSI Mask test

- User operation and graphical display interface based on PC Ethernet communication software

· Modular structure

· Fast sampling rate

· Excellent signal fidelity (Jitter<0.1ps RMS-typical)

· FramsScan acquisition mode



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
