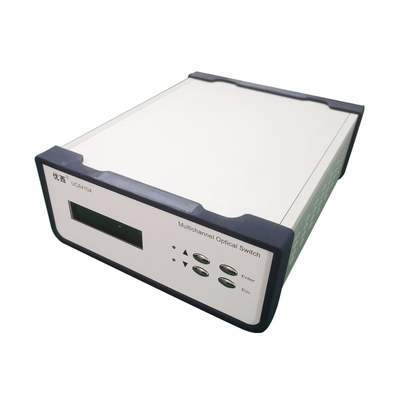

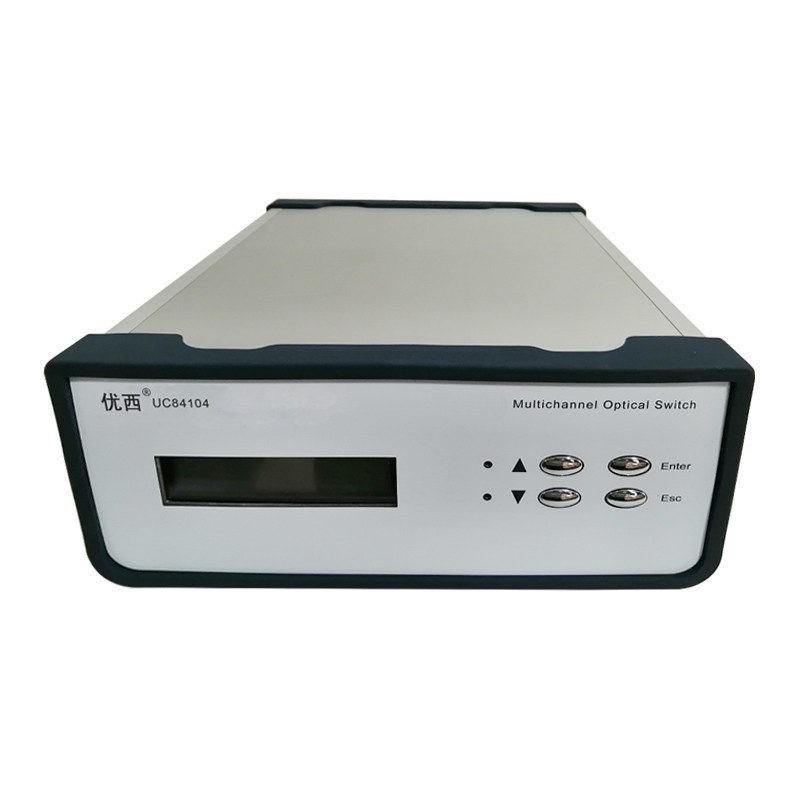

Multichannel Optical Switch 1310nm 1550nm

I'm Online Chat Now

Multichannel Optical Switch 1310nm 1550nm

Multichannel Optical Switch 1310nm 1550nm
Multichannel Optical Switch 1310nm 1550nm Multichannel Optical Switch 1310nm 1550nm

Large Image :  Multichannel Optical Switch 1310nm 1550nm

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U84104
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 pcs+per month

Multichannel Optical Switch 1310nm 1550nm

Description
Highlight:

Multichannel Optical Switch

,

optical network equipment 1550nm

,

Optical Switch 1310nm

U84104 Bench Optical switch



Optical switch is a kind of optical path control device, which plays the role of controlling and converting optical path. It plays an important role in optical communication applications. Optical switch is mainly used in: multi-channel optical monitoring in optical transmission system, LAN multi-light source/detector automatic switching and multi-point dynamic monitoring system of optical sensor; Optical testing system for optical fiber, optical devices, network and field engineering optical cable testing; Optical device installation and adjustment. The 1 x 4 optical switch switches one input route to one of the four output routes.



Features
.> Compact Size
> Ultra-Fast Switching Time
> Low IL, High Isolation
> High Reliability and stability
Application
> Fiber Sensing
> Protection
> Network Monitoring
> Aerospace Radar



Specification

Test wavelength  1310nm, 1550nm
Fiber Type Single Mode
Optical interface  FC/PC
Insertion loss  ≤1dB
Return loss  ≥45dB
Crosstalk ≤-70dB
Switching time  ≤12ms (sequential switching of adjacent channels)
Repeatability ≤±0.02dB
Life  ≥3×107 times
Working temperature  -20~ +60℃
Storage temperature  -40 ~ +70℃
Power requirements AC 220V
Control interface RS-232
Chassis size 290mm*120mm*260mm





FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
