Single Mode Fiber Optical Switch Multichannel FC PC Optical Interface

I'm Online Chat Now

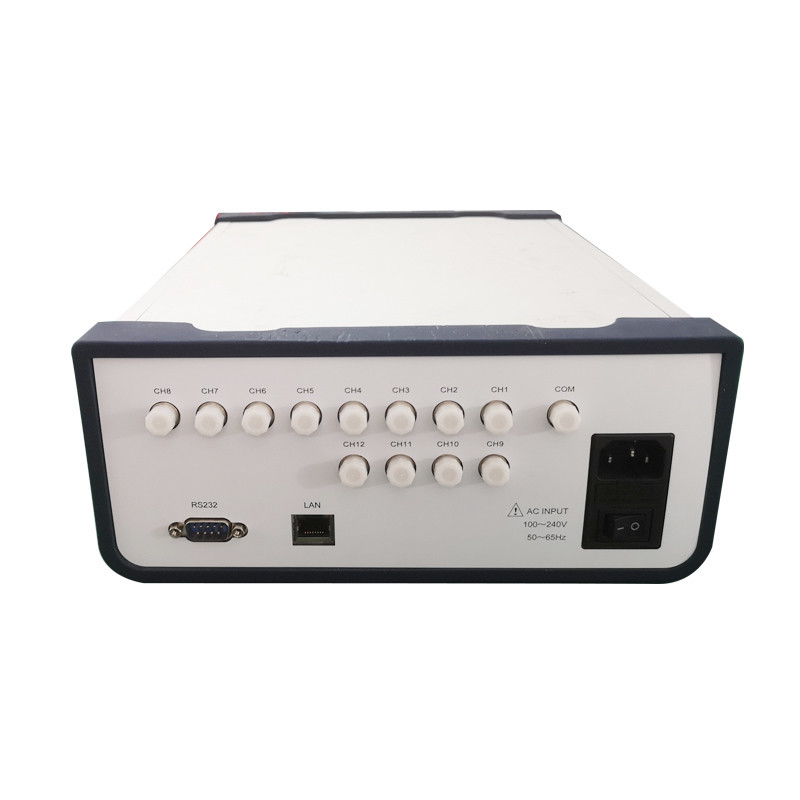

Single Mode Fiber Optical Switch Multichannel FC PC Optical Interface

Single Mode Fiber Optical Switch Multichannel FC PC Optical Interface
Single Mode Fiber Optical Switch Multichannel FC PC Optical Interface

Large Image :  Single Mode Fiber Optical Switch Multichannel FC PC Optical Interface

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U84112
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 pcs+per month

Single Mode Fiber Optical Switch Multichannel FC PC Optical Interface

Description
Product Name: Fiber Optical Switch Mode: Single Mode
Optical Interface: FC PC Crosstalk: ≤-70dB
Control Interface: RS-232 OEM: Available
Highlight:

Fiber Optical Switch PC Optical Interface

,

single mode switch 1650nm

,

Fiber Optical Switch Multichannel

U84112 Multichannel Optical switch



Optical switch is a kind of optical path control device, which plays the role of controlling and converting optical path. It plays an important role in optical communication applications. Optical switch is mainly used in: multi-channel optical monitoring in optical transmission system, LAN multi-light source/detector automatic switching and multi-point dynamic monitoring system of optical sensor; Optical testing system for optical fiber, optical devices, network and field engineering optical cable testing; Optical device installation and adjustment. The 1 x 4 optical switch switches one input route to one of the four output routes.



Specification

Working wavelength 1260~1650nm
Fiber Type Single Mode
Optical interface FC/PC
Insertion loss ≤1dB
Return loss ≥45dB
Crosstalk ≤-70dB
Switching time ≤12ms (sequential switching of adjacent channels)
Repeatability ≤±0.02dB
Life 3×107 times
Working temperature -20~ +60℃
Storage temperature -40 ~ +70℃
Power requirements AC 220V
Control interface RS-232
Chassis size 288mm×260mm×117mm



FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
