1x8 Polarizing Fiber Optic Switches AC 220V 288mm×260mm×117mm

1x8 Polarizing Fiber Optic Switches AC 220V 288mm×260mm×117mm
1x8 Polarizing Fiber Optic Switches AC 220V 288mm×260mm×117mm

Large Image :  1x8 Polarizing Fiber Optic Switches AC 220V 288mm×260mm×117mm

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8418
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 pcs+per month

1x8 Polarizing Fiber Optic Switches AC 220V 288mm×260mm×117mm

Description
Product Name: Fiber Optic Switches Power: AC 220V
Size: 288mm×260mm×117mm Working Temperature: -20~ +60℃
Switching Time: ≤12ms Model: U84112P
Highlight:

fiber optic switches AC 220V

,

fiber switch AC 220V

,

fiber optic switches 288mm×260mm×117mm

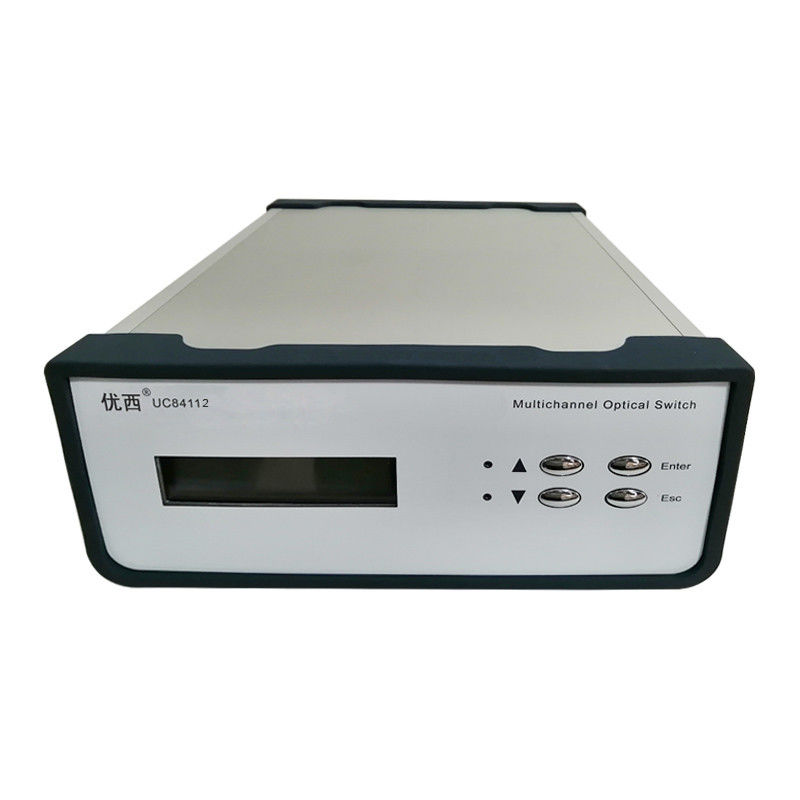

1x8 Polarizing Fiber Optic Switches AC 220V 288mm×260mm×117mm



1*8 single-mode optical switch is a device with multi-channel optical path switching function, which mainly has the following uses:

▲Multi-channel optical monitoring in optical transmission system;

▲LAN multi-light source/detector automatic switching, light sensing multi-point dynamic monitoring system;

▲ Optical test system for optical fiber, optical devices, networks and field engineering cable testing;

▲optical device installation and adjustment.





Specification

Working wavelength 1260~1650nm
Fiber Type Single Mode
Optical interface FC/PC
Insertion loss ≤1dB
Return loss ≥45dB
Crosstalk ≤-70dB
Switching time ≤12ms (sequential switching of adjacent channels)
Repeatability ≤±0.02dB
Life 3×107 times
Working temperature -20~ +60℃
Storage temperature -40 ~ +70℃
Power requirements AC 220V
Control interface RS-232
Chassis size 288mm×260mm×117mm
