Product Details:
|
Product Name: | Multichannel Optical Switch | Working Wavelength: | 1260nm - 1650nm |
---|---|---|---|
Power Requirements: | AC 220V | Storage Temperature: | -40 ~ +70℃ |
Repeatability: | ≤±0.02dB | Return Loss: | ≥45dB |
Highlight: | Optical Switch 1650nm,fiber optic switches 1650nm,Optical Switch 1260nm |

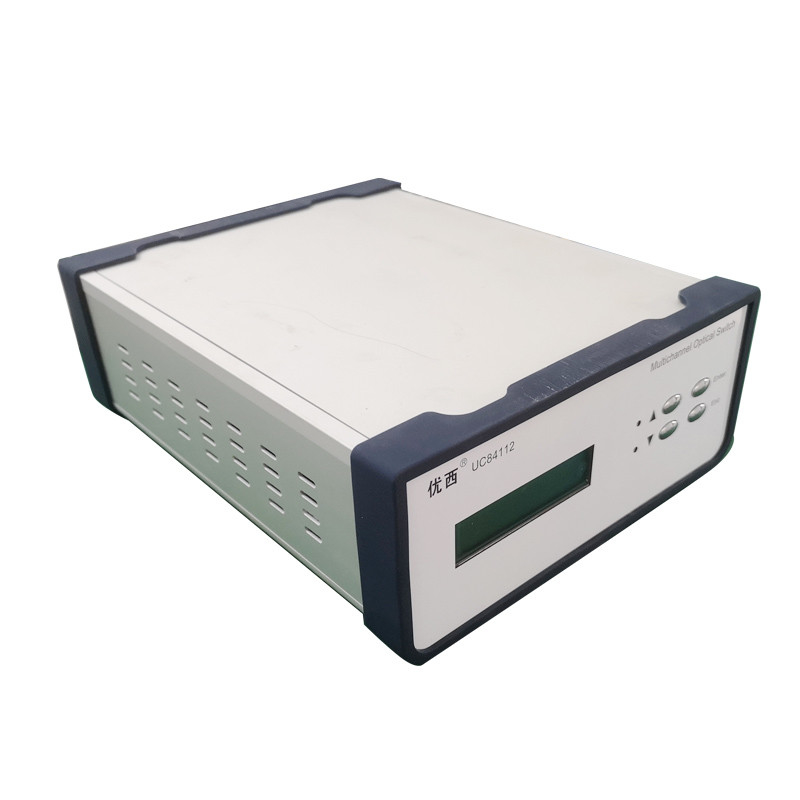

U84108 Multichannel Optical switch
Optical switch is a kind of optical path control device, which plays the role of controlling and converting optical path. It plays an important role in optical communication applications. Optical switch is mainly used in: multi-channel optical monitoring in optical transmission system, LAN multi-light source/detector automatic switching and multi-point dynamic monitoring system of optical sensor; Optical testing system for optical fiber, optical devices, network and field engineering optical cable testing; Optical device installation and adjustment. The 1 x 4 optical switch switches one input route to one of the four output routes.
Specification
Working wavelength | 1260~1650nm |
Fiber Type | Single Mode |
Optical interface | FC/PC |
Insertion loss | ≤1dB |
Return loss | ≥45dB |
Crosstalk | ≤-70dB |
Switching time | ≤12ms (sequential switching of adjacent channels) |
Repeatability | ≤±0.02dB |
Life | ≥3×107 times |
Working temperature | -20~ +60℃ |
Storage temperature | -40 ~ +70℃ |
Power requirements | AC 220V |
Control interface | RS-232 |
Chassis size | 238mm×220mm×105mm |
FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
