2/4/8/16 Desktop Optical Switch With Return Loss 50dB Operating Wavelength 1260 ～ 1650nm

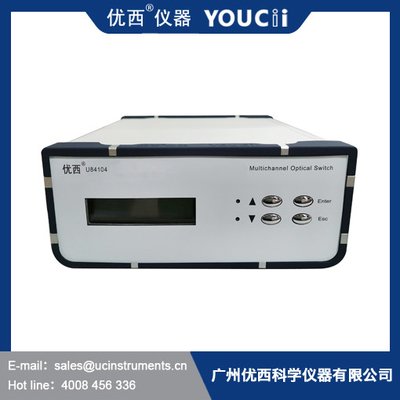

1*4 Desktop Optical Switch
Application:
FSW1×4-SM-C single-mode optical switch is a device with multi-channel optical path switching function.
It mainly has the following uses:
optical transmission system of multi-channel light monitoring;
LAN how light/detector automatic exchange, optical sensing multi-point dynamic monitoring system;
optical testing system for optical fiber, optical devices, network and field engineering cable test;
optical device with adjustable.
Technical indicators:
test wavelength 1310 nm, 1550 nm
fiber types: single mode
optical interface: FC/PC
insertion loss: 1 db or less
return loss: p 45 db
crosstalk: - 70 db or less
switch time: 12 ms or less (adjacent channel switching sequence)
weight after sex: + / - 0.02 dB or less
life of life: 3 x 107 times or more
working temperature: - 20 ~ + 60 ℃
storage temperature: - 40 ~ + 70 ℃
power supply requirements: AC 220 v
control interface: RS - 232
case size: 290 mm * 120 mm * 260 mm
Specifications
|
|
U84104 |
| wavelength |
1260 ～ 1650nm |
| wavelength of test |
1310nm / 1550 nm |
| insertion loss |
≤1.2 dB |
|
|
≤±0.05 dB |
|
|
≥50dB |
|
|
≥55dB |
- polarization dependent loss
|
≤0.25 |
| polarization dependent loss |
≤0.05 |
| switching period |
≤ 10ms(adjacent sequence switch) |
|
|
SM(9/125um,polarization maintaining optical fibre) |
|
|
FC/PC |
|
|
RJ45,RS-232 |
| working power supply |
double AC: 85 ～ 264 V(50/60Hz) |
| operating temperature |
-5 ～ + 60℃ |
| storage temperature |
-40 ～ + 80°C |
| chassis Type |
- Table-type box (245×105×325 mm)
|
