Product Details:
|
| Attenuation Range: | ≥ 40 DB | Voltage Type: | 3.0V Or 5.0V |
|---|---|---|---|
| Operating Voltage: | 12V | Operating Temperature: | 0-50°C |
| Dimension: | (L)45×(W)41×(H)9.7 ±0.2mm | Connector Type: | Customized |
| Switch Time: | ≤ 10ms (adjacent Sequential Switching) | ||
| Highlight: | High Speed Optical Switch,1*8 Optical Switch,1310/1550nm Optical Switch |
||

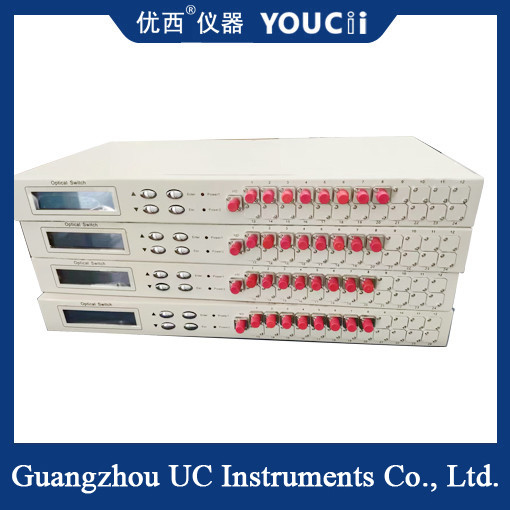

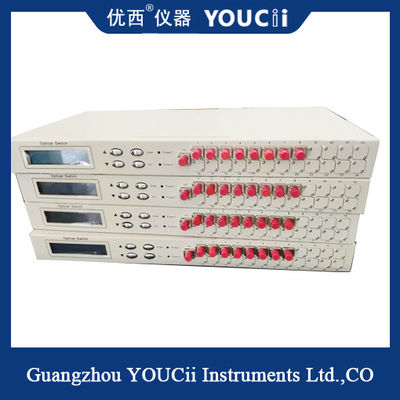

1*8 Multi-Channel High-Speed Optical Switch 1310/1550nm Widely Used
The 8-channel optical switch, as the name suggests, is an optical switching device with 8 independent channels. It allows optical signals to flexibly switch between these channels to meet the needs of different application scenarios.
Main type
According to the different implementation principles and technical means, the 8-channel optical switch can be divided into a variety of types, including but not limited to:
Mechanical optical switch: Through the movement of mechanical structures (such as micro mirrors, rotating arms, etc.) to change the direction of the optical path to achieve the switch of optical signals. This type of optical switch usually has high stability and reliability, but the switching speed is relatively slow.
MEMS optical switch (micro-electro-mechanical system optical switch) : The use of micro-electronic technology to manufacture tiny mechanical structures to achieve the switching of optical signals. MEMS optical switches combine the stability of mechanical optical switches with the high speed of electronic devices, and have the advantages of small size, light weight, low power consumption and fast switching speed.
Electro-optical switch: Changes the refractive index of the material through electro-optical effects (such as the Pucker effect), and then controls the propagation path of the optical signal. Electro-optical switches usually have higher switching speeds and wider bandwidths, but may require higher drive voltages.
specification
| Type number | U8418 |
| Operating wavelength | 1260 ～ 1650nm |
| Test wavelength | 1310nm / 1550 nm |
| Insertion loss | ≤1.2 dB |
| repeatability | ≤±0.05 dB |
| Return loss | ≥50dB |
| crosstalk | ≥55dB |
| Wavelength dependent loss | ≤0.25 |
| Polarization dependent loss | ≤0.02 |
| Switching time | ≤ 10ms(Adjacent sequential switching) |
| Fiber type | SM(9/125um) |
| Connector form | FC/PC |
| Monitoring port | RJ45,RS-232 |
| Working power supply | AC: 85 ～ 264(50/60Hz) |
| Operating temperature | -5 ～ + 60℃ |
| Storage temperature | -40 ～ + 80°C |
| Chassis type | 19 inch standard 1U rack(483×220×44mm) |
Application scenario
8 channel optical switch has been widely used in optical communication, optical sensing, optical testing and other fields. For example:
Optical communication network: in wavelength division multiplexing (WDM) system, 8-channel optical switch can be used for optical signal routing, protection and recovery.
Optical sensing systems: In distributed optical fiber sensing systems, 8-channel optical switches can be used to achieve multi-point simultaneous measurement, improving the efficiency and accuracy of the sensing system.
Optical test equipment: During the test of optical devices and systems, 8-channel optical switches can be used to simulate different optical path conditions to evaluate and optimize the performance of optical devices and systems.
