Product Details:
Place of Origin: China
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8112
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: cartons
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10pcs+per month

Desktop Tunable Laser Source Wavelength Tuning High Precision

Description
Band Option: O/C/L/CL Power Adjust Range (Option): 25 DB
Wavelength Resolution: 1.0 Pm Absolute Wavelength Accuracy: ± 10 Pm, Typ. < 5 Pm
Relative Wavelength Accuracy: ±5 Pm, Typ. ± 2 Pm Wavelength Repeatability: ± 2 Pm, Typ. ±1 Pm
Tuning Speed: ≤ 2 Ms Per Step Power Stability: ≤ ± 0.01dB, (15min).
Highlight:

Desktop Tunable Laser Source UC

,

1525 1568 nm wavelength tunable laser

,

Tunable Laser Source 1260 1360 nm

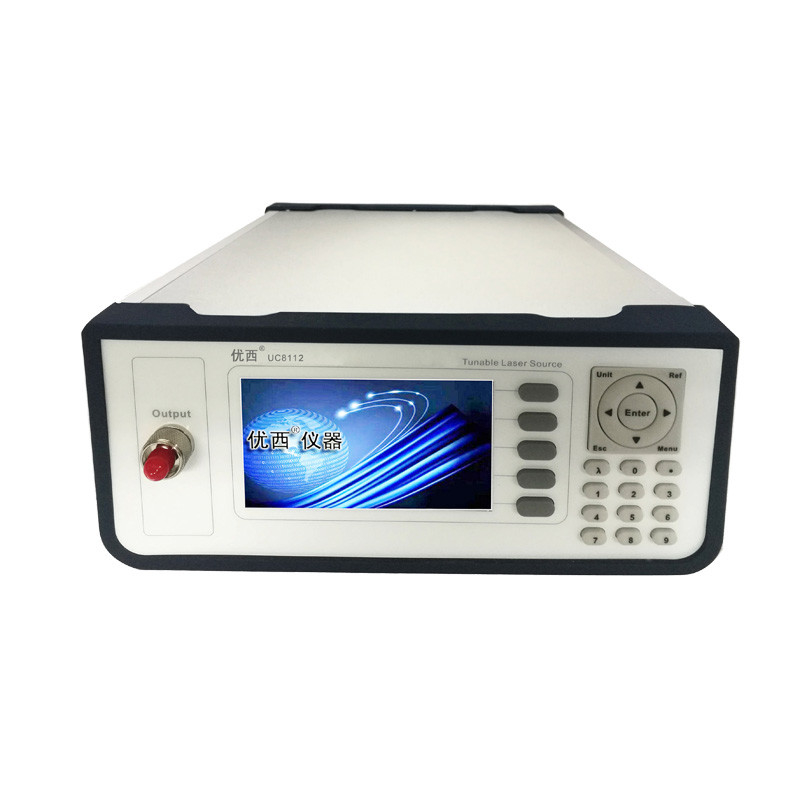

U8112 Desktop Tunable Laser Source Wavelength Tuning High precision



Model #U8112
Band OptionOCLCL
Wavelength Tuning range (nm)1260~13601525~15681568~16101525~1610
Output Power≥ 7dBm≥13dBm≥ 10dBm≥ 7dBm
Power Adjust Range (Option)25 dB
Wavelength resolution1.0 pm
Absolute wavelength accuracy± 10 pm, typ. <5 pm
Relative wavelength accuracy±5 pm, typ. ± 2 pm
Wavelength repeatability± 2 pm, typ. ±1 pm
Wavelength stability± 2 pm (24 hrs at constant temperature)
Tuning speed≤ 2 ms per step
Power stability ± 0.01dB, (15min).
Power repeatability± 0.05dB
Power linearity± 0.3dB
Power flatness versus wavelength0.3dB typ. 0.5dB max.
Side-mode Suppression ratio≥ 35dB≥ 45dB
Relative intensity noise< -135dB
PowerAC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max.
Storage temperature−40°C to +80°C
Operating temperature0°C to +45°C
Dimensions245 mm W, 105 mm H, 320 mm D
Weight2.0 kg



The U8112 Desktop Tunable Lasers offer superior performance for the testing of DWDM components, AWG & PLC components, optical amplifiers EDFA, DWDM system and other general purpose fiber optic test and measurement applications. It has a wavelength high accuracy, high power output, small dimensions, fast startup, and is an affordable tunable laser source system. The system comes with O band,C band, L band, or C + L band options.

FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
