Product Details:
|
Product Name: | Optical Connector Motorized Polarization Scrambler | Wavelength Range: | 1200 ~ 1610 Nm |
---|---|---|---|
Max. Signal Power: | +30dBm | Rotation Speed Dynamic Range: | 1600 Step |
Optical Connector: | FC/PC / FC/APC | Interface: | RS232 & USB |
Highlight: | APC Optical Connector Motorized polarization scrambler,polarisation scrambler 1610nm,polarization scrambler 1200nm |

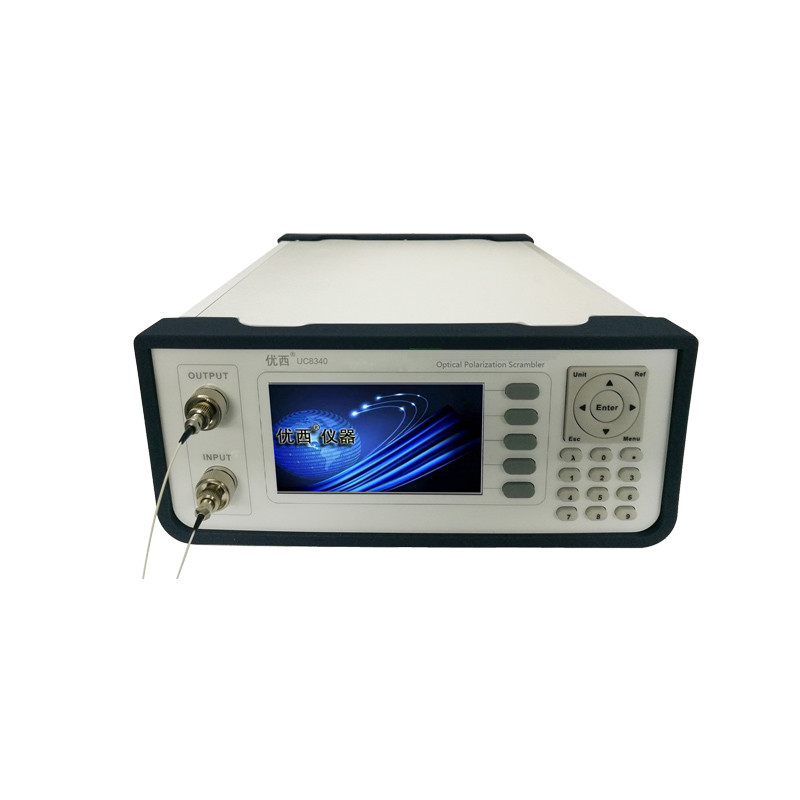

U8340 Motorized Polarization Scrambler
The U8340 electric PDL generator is an electric PDL generator generated by programming the mechanical PDL generator. The internal 4 rotating rings are programmed to produce arbitrary PDL states. By programming control, can generate accurate demand state of PDL, meet the demand of measurement and test, are widely used in the DWDM, GFF, INTERLEAVER, ISLOATOR passive components such as testing.
U8340 is a polarization generator controlled electrically by program instructions. Its polarization control ability improves the measurement speed, accuracy and overall productivity. The continuous length of optical fiber makes it have high power and ultra-low insertion loss. The design provides a wide range of automatic scanning rates and high incremental angular resolution. The four fiber ring structure design has been proven to have good ultra-low power change control (PDL). The U8340 electrodynamic polarization generator has a reliable design and can be used in a wide range of applications from device testing to polarization mode dispersion PMD. (can replace 11896A)
Model # | U8340 |
Principle |
4 Motorized Fiber Knob Loop |
Wavelength Range | 1200 ~ 1610 nm |
Insertion Loss | < 1.0 dB |
Return Loss | > 50dB (PC) / >60dB (APC) |
Polarization Extinction Ratio | 40 dB |
PDL | < 0.01 dB |
Max. Signal Power | +30dBm |
Max SOP Transit Time | 360°/ sec |
Rotational Resolution | 0.1125°/ step |
Angular Accuracy | ±.00024° |
Angular Repeatability | ±.014° |
Rotation Speed Dynamic Range | 1600 step |
Settling Time | 1~99.9 Sec / Continuity |
Number of AutoScan Rate Settings | 10 |
Optical Connector | FC/PC / FC/APC |
Interface | RS232 & USB |
Power | 100 ~ 240 V AC, 50 - 60 Hz |
Operation Temperature | 0~ +40℃ |
Storage Temperature | -30~+80℃ |
Dimensions | 245 mm W, 105 mm H, 320 mm D |
Weight | 4.0 kg |
FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
