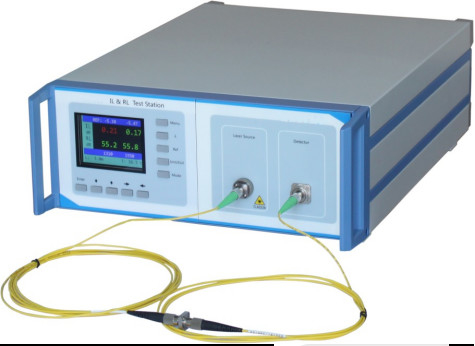

Winding Free Plug Back Optical Return Loss Meter 1310nm 1550nm

I'm Online Chat Now

Winding Free Plug Back Optical Return Loss Meter 1310nm 1550nm

Winding Free Plug Back Optical Return Loss Meter 1310nm 1550nm
Winding Free Plug Back Optical Return Loss Meter 1310nm 1550nm

Large Image :  Winding Free Plug Back Optical Return Loss Meter 1310nm 1550nm

Product Details:
Place of Origin: CHINA
Brand Name: UC
Model Number: UC8522+UC88201
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5pcs+per month

Winding Free Plug Back Optical Return Loss Meter 1310nm 1550nm

Description
Product Name: Return Loss Meter Wavelength Range: 1310nm 1550nm
Model: UC8522+UC88201 Fiber Type: Standard SM
Interface: RS232 Power: 100 ~ 240 V AC
Highlight:

Optical Return Loss Meter 1310nm

,

return loss meter 1310nm

,

Optical Return Loss Meter

Winding free plug back loss tester



UC8522+UC88201 1310nm / 1550nm Dual wavelength Return loss meter and power meter is a compact, direct display instrument for the convenient measurement of return loss, insertion loss and power. With a single output port,the meteris very easy to use and ideal forfiber cable jumper manufacturers. The UC8522 is equipped with 1310nm/1510nm: two built-in laser sources The integration of a FC/APC ultra-low back reflection connector on the output port enables the use of hybrid jumpers to accommodate measurements with various connector types without compromising the return loss measurement range. When a device under test (DUT) is connected to the jumper and the DUT output is terminated, the return loss of the DUT will be displayed. The UC8522 is very stable at low return loss level and insertion loss and power range cab be tested between +5~ -85 dBm.

Specification

Model UC8522+UC88201
Sensor Element InGaAs
Operation Wavelength Range 850 ~ 1700 nm
Power Range + 5 ~ -85 dBm
Application Fiber Type Standard SM
Relative Accuracy – Return Loss ± 0.4 dB
Absolute Power Accuracy ± 0.2 dB
Relative Accuracy – Insertion Loss < 0.02 dB Typical
Interface RS232
Power 100 ~ 240 V AC
 Operation Temperature 0~ +40℃
Storage Temperature -30~+80℃
Recalibration Period 2 years
Dimensions 245mm W×105mm H×320mm D
Weight 3.0 kg



FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
