O Band Single Channel EDFA RS232 RJ45 1290nm 1330nm

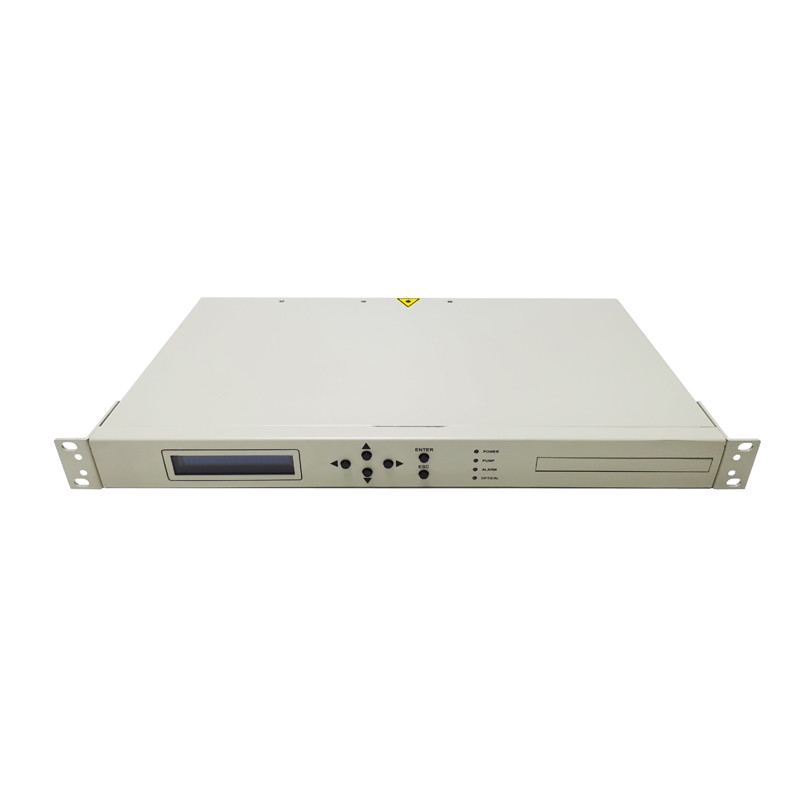

Large Image : O Band Single Channel EDFA RS232 RJ45 1290nm 1330nm

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCii
Certification:	CU,IOS
Model Number:	U8331O-20

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 pcs+per month

Contact Now

O Band Single Channel EDFA RS232 RJ45 1290nm 1330nm

Description

Product Name:	EDFA RS232 RJ45	Band:	O Band
Dimensions:	484 X 255 X 45 Mm	Optical Interface Type:	FC/PC
Communication Interface:	RS232,RJ45	Model:	U8331O-20
Highlight:	single channel EDFA RS232 , 1330nm EDFA , single channel EDFA RS232

U8331O-20 O-band single-channel EDFA

Product Model	U8331O-20
Parameter	Min	Type	Max	Units
Working wavelength	1290		1330	nm
Saturation output power			8	dBm
Input power	-20		0	dBm
Grain		10	20	dB
Noise Figure (@-20dBm input)		6.0	7.0	dB
Output power stability		±0.05	±0.1	dB
Input isolation	30			dB
Output isolation	30			dB
return loss			45	dB
Operating temperature	0		45	℃
Storage temperature	-20		60	℃
Power consumption			25	W
Monitoring parameters	Input/output power monitoring, output power adjustable
Communication Interface	RS232,RJ45
Optical interface type	FC/PC
Working voltage	100~220V AC
Dimensions	484 x 255 x 45 mm (outside dimensions, including hanging ears)

FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
