Product Details:
|
Product Name: | Optical Return Loss Meter | Working Wavelength Range: | 1529nm To 1569nm |
---|---|---|---|
Optical Channels: | 16 | Measuring Wavelength Range: | 40 |
Measurement Resolution: | 0.1pm | Model: | U8784 |
Highlight: | 1529nm optical performance monitoring,1569nm digital optical module,1569nm optical performance monitoring |

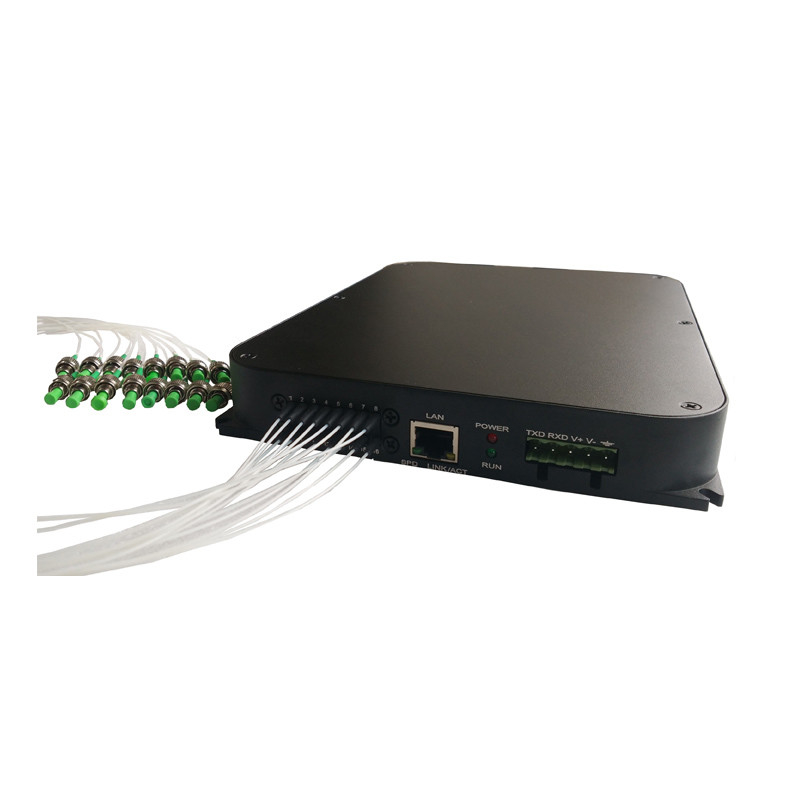

U8784 Optical performance monitoring module
Parameter | Unit | Indicator |
Working wavelength range | nm | 1529~1569 |
Number of optical channels | 16 | |
Measuring wavelength range | nm | 40 |
Minimum detectable wavelength separation | nm | 0.5 |
Measurement resolution | pm | 0.1 |
Wavelength repeatability | pm | £5 |
Sweep frequency | Hz | 100 |
Optical interface | FC/APC | |
Communication Interface | RJ45,RS232 | |
Working temperature | ℃ | 0~50 |
Storage temperature | ℃ | -10~70 |
Operating voltage | V | DC 12 |
Power consumption | W | £18 |
Weight | kg | <2 |
Dimensions | mm | 225´172´28 |
U8784 is a 16-channel high-speed optical performance monitoring module with high integration and good stability. It is suitable for FBG sensor system to monitor physical parameters such as temperature, dynamic stress and vibration.
This module uses the patented PIC photonic integration technology with wavelengths ranging from 1529nm to 1569nm. The wavelength, spectrum and other data of the grating to be measured can be reported to the upper computer through the RJ45 network port.
FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
