1565nm Single Channel Optical Return Loss Meter EDFA

1565nm Single Channel Optical Return Loss Meter EDFA
1565nm Single Channel Optical Return Loss Meter EDFA

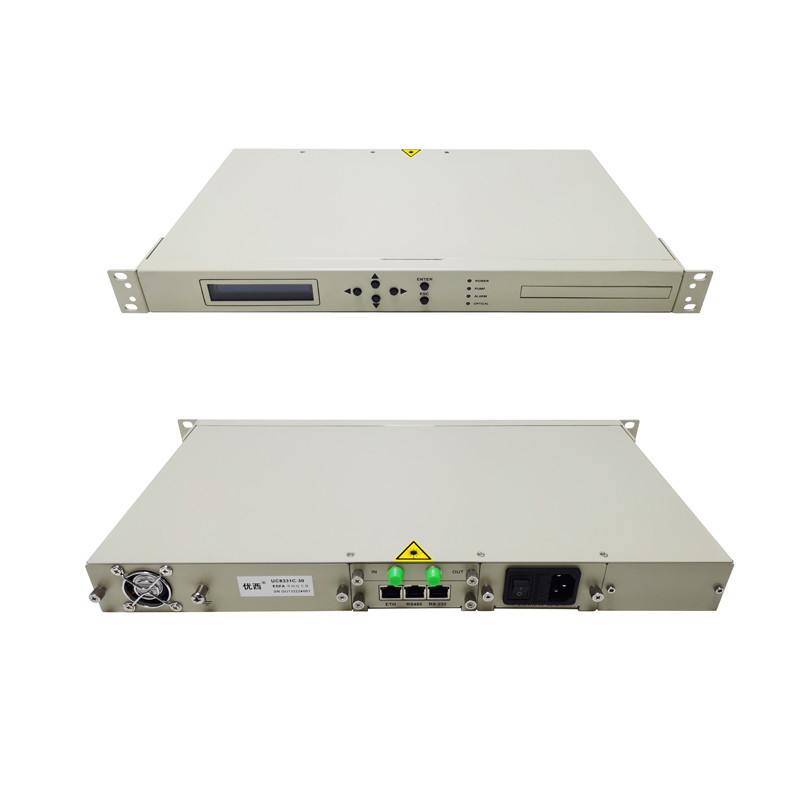

Large Image :  1565nm Single Channel Optical Return Loss Meter EDFA

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8331C-30
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 pcs+per month

1565nm Single Channel Optical Return Loss Meter EDFA

Description
Product Name: Optical Return Loss Meter EDFA Working Wavelength: 1565nm
Output Isolation: 30dB Optical Interface Type: FC/APC,SMF-28
Working Mode: ACC & APC,keyboard Conversion Dimensions: 484 X 255 X 45 Mm
Highlight:

Optical Return Loss Meter EDFA

,

edfa amplifier 1565nm

,

1565nm Optical Return Loss Meter

U8331C-30 Single Channel EDFA



Product Model U8331C-30
Parameter Min Type Max Units
Working wavelength 1528   1565 nm
Output Power@-3dBm     23 dBm
Input power -30   0 dBm
Small signal gain@-30dBm 37     dB @1550nm
Noise Figure (@-30dBm input)   5.0 6.0 dB
Output power stability   ±0.05 ±0.1 dB
Input isolation 30     dB
Output isolation 30     dB
return loss     45 dB
Polarization dependent gain   0.3 0.5 dB
Polarization Mode Dispersion     0.5 ps
Operating temperature 0   45
Storage temperature -40   80
Power consumption     25 W
Working Mode ACC & APC,keyboard conversion
Optical interface type FC/APC,SMF-28
Working voltage 100~220V AC Power adapter
Dimensions 484 x 255 x 45 mm (outside dimensions, including hanging ears)



FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
