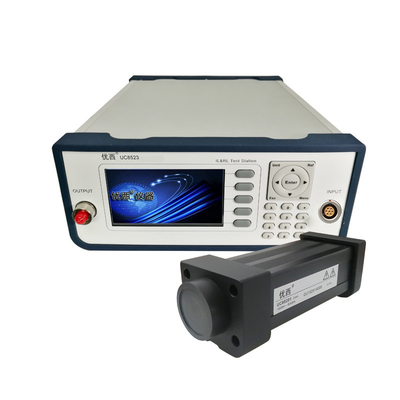

SMO Fiber Optical Return Loss Meter By Light Source External

SMO Fiber Optical Return Loss Meter By Light Source External
SMO Fiber Optical Return Loss Meter By Light Source External

Large Image :  SMO Fiber Optical Return Loss Meter By Light Source External

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8503+U82021
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 pcs+per month

SMO Fiber Optical Return Loss Meter By Light Source External

Description
Power: 100 ~ 240 V AC Product Name: Optical Return Loss Meter
Fiber: SMO Fiber Dimensions: 245mm W×105mm H×320mm D
Weight: 3.5 Kg Return Loss Range: 0~60 DB
Highlight:

Optical Return Loss Meter RS232

,

SMO Fiber Optical fiber loss meter

,

240 V AC Optical Return Loss Meter

U8503+U82021 Insert/Return loss meter by Light Source External



Model # U8503+U82021
Sensor Element InGaAs
Operation Wavelength Range Determined by external light source
Power Range + 5 ~ -70 dBm
Return Loss Range 0~60 dB
Application Fiber Type Standard SM
Relative Accuracy – Return Loss ± 0.4 dB
Absolute Power Accuracy ± 0.2 dB
Relative Accuracy – Insertion Loss < 0.02 dB Typical
Interface RS232
Power 100 ~ 240 V AC
Operation Temperature 0~ +40℃
Storage Temperature -30~+80℃
Recalibration Period 2 years
Dimensions 245mm W×105mm H×320mm D
Weight 3.5 kg





U8503+U82021 Insert/Return loss meter and power meter is a compact, direct display instrument for the convenient measurement of return loss, insertion loss and power. With a single output port, the meter is very easy to use and ideal for fiber cable jumper manufacturers.
The U8503+U82021 is Insert/Return Loss Meter by Light Source External. The integration of a FC/APC ultra-low back reflection connector on the output port enables the use of hybrid jumpers to accommodate measurements with various connector types without compromising the return loss measurement range. When a device under test (DUT) is connected to the jumper and the DUT output is terminated, the return loss of the DUT will be displayed.



FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
