Product Details:
|
Product Name: | Optical Return Loss Meter | Wavelength: | 1568nm |
---|---|---|---|
Output Power: | 13 DBm | Wavelength Resolution: | 1.0 Pm |
Tuning Speed: | ≤ 2 Ms Per Step | Power Flatness: | 0.3 DB; Typical Values 0.05dB. |
Highlight: | 1568nm Optical Return Loss Meter,1525nm Laser Scanning Spectrometer,1525nm Optical Return Loss Meter |

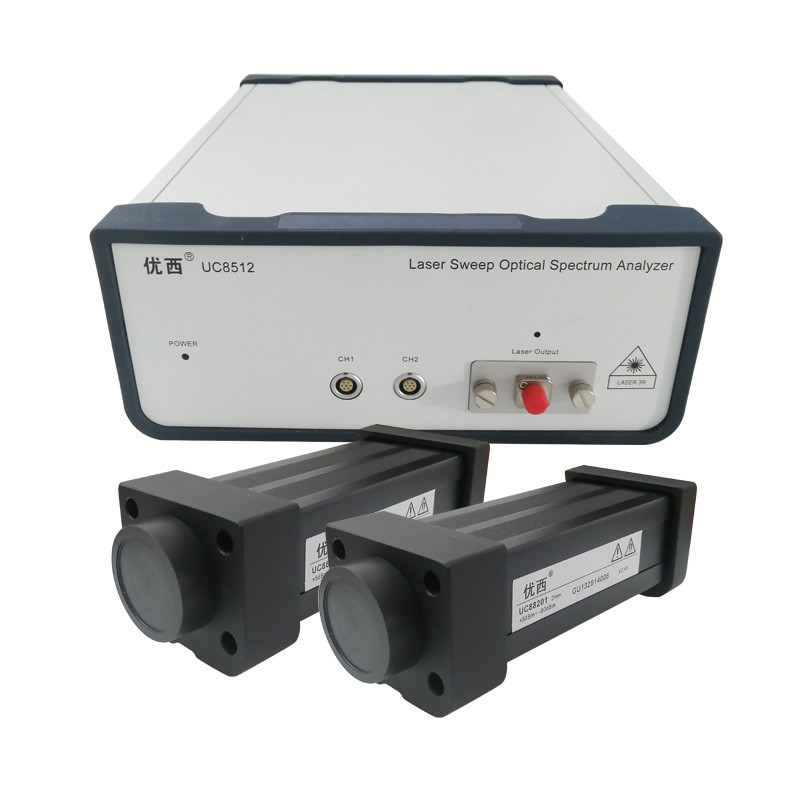

U8512C+2xU88201 Laser Scanning Spectrometer
Model # |
U8512C+U88201 |
Adjustable laser light source | |
Wavelength range |
1525.00 ~ 1568.00 nm |
Output Power |
13 dBm |
Wavelength resolution |
1.0 pm |
Absolute wavelength accuracy |
±10 pm, Typ. ±5 pm |
Relative wavelength accuracy |
± 5 pm, Typ. ±2 pm |
Wavelength repeatability |
± 3 pm, typ. ±1 pm |
Wavelength stability |
±5 pm (typ., 24 hrs at Constant Temperature) |
Tuning speed | ≤ 2 ms per step |
Power stability |
±0.005dB (15Min) ±0.05 dB ( 24 hours) |
Power repeatability |
± 0.05 dB |
Power linearity |
± 0.3 dB |
Power flatness | 0.3 dB; Typical values 0.05dB. |
Side mode rejection rate | ≥ 40 dBm |
Relative noise intensity | Typical values < -135 dB |
Optical power meter | |
Wavelength range | 850 nm to 1625 nm |
Power measuring range | +5 dBm to -85 dBm |
Precision of power | < ± 4% |
Power repeatability | < 0.1 dB |
Scanning function: equipped with DWDM/Isolator/GFF device scanning software | |
Scanning mode |
Fast adjustable laser spectral scanning |
resolution ratio | 1 pm |
precision | 5 pm |
Power display | Peak power display |
Central wavelength function | Central wavelength and 3dB bandwidth display |
Reference function | Reference test |
Power adapter power | AC 100 ~ 240 V , 48 - 66 Hz,100 VA max. |
display | PC control interface |
Optical output interface | FC/PC connector |
Communication interface | USB / RS232 interface |
Storage temperature | −40°C ~ +80°C |
Operating temperature | 0°C ~ +45°C |
Dimensions | 245 mm W, 105 mm H, 320 mm D |
Weight | 3.0kg |
FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
