Full Rate 10Gbps Clock Recovery Module For Optical Network Equipment

Description
Product Name: 10Gbps Clock Recovery Module Application: Optical Network Equipment
Model: U9710B Wavelength Range: 800nm
Data Rate: 10Gbps Custom: Available
Highlight:

PON Clock Recovery Module

,

Full Rate 10Gbps CDR Module

,

10Gbps Clock Recovery Module

U9710B Full Rate 10Gbps CDR



No. Specifications Max.  Min. Unit.
1 Data rate range 11.3 0.155 Gbps
2 Wavelength range 1600 800 nm
3 Optical input range (determined by module sensitivity) +3 -15 dBm
4 Output recovered electrical clock range 5.65 / 2.825 0.0775/0.03875 GHz
5 Output electrical clock amplitude 600(typical value) mVpp
6 Clock rise time(OC-192)(20%~80%) 33.1 22.2 ps
7 Clock fall time(OC-192)(80%~20%) 33.7 23.9 ps
8 Output Jitter(10.3125Gbps) 1 (typical value) ps
9 Clock frequency(10.3125Gbpsrate, divided by2/4) 5.156 / 2.578 5.156 / 2.578 GHz
10 Internal Loss of Signal Detect (LOS) 128 (overload)  5 (sensitivity) mV
11 Power supply voltage (input voltage of external power supply) 5.5 4 V
12 Operating temperature 85 -40

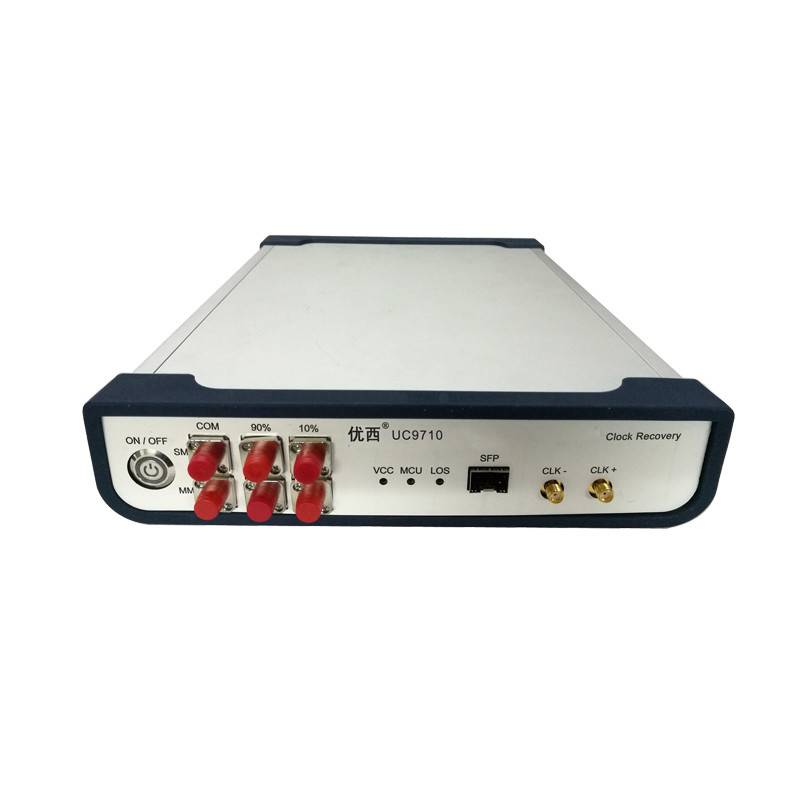

U9710 CDR (Clock Recovery Module ) is mainly used to provide clock recovery signal in the test environment without triggering clock, so as to use the sampling oscilloscope to test the optical eye diagram of the device. The typical application is the testing of optical network equipment or the BOB product in PON application. Because the photometric device itself has no frequency division clock output, it is necessary to recover the clock signal to trigger the sampling oscilloscope when testing the optical eye diagram.
U9710 CDR has a SFP optical port, which is suitable for SFP encapsulated conventional SFP, SFP+, OLT SFP and other optical modules. It only needs the receiving end of the optical module to convert the optical signal to the electrical signal, and then extract and output the clock of the electrical signal. Clock signal is mainly used for the trigger signal of oscilloscope. This device self-adapts to the rate and does not require software configuration.
