32Gbaud PAM4 CDR Optical Oscilloscope 1650nm To 1250nm

Description

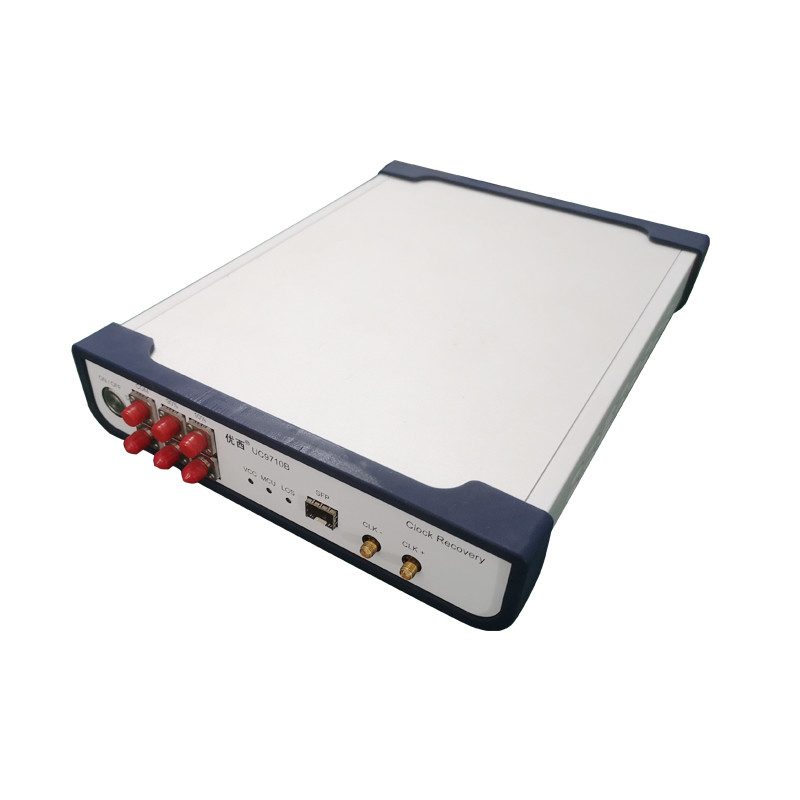

Product Name: CDR Optical Oscilloscope Wavelength Range: 1650nm To 1250nm
Data Rate Range: 32Gbaud Output Electrical Clock Amplitude: 500 MVpp
Adaptable Module Types: SFP28/56, SR, LR, BIDI Model: U9720B
Highlight:

PAM4 CDR Optical Oscilloscope

,

1650nm digital oscilloscope

,

32Gbaud Optical Oscilloscope

U9720B 32Gbaud PAM4 CDR



No. Specifications Max. Min. Unit.
1 Data rate range 32 25 Gbps/Gbaud
2 Wavelength range(single mode) 1650 1250 nm
3 Optical input range +5 -15 dBm
4 Clock Recovery Output Divider 2 / 8 / 32 / 40
5 Output electrical clock amplitude 500(typical value) mVpp
6 CML clock differential output amplitude 800 200 mVpp
7 Clock output random jitter 800 300 fs
8 Clock frequency (take 28.1Gbps as an example) 14.05 0.70 GHz
9 Internal Loss of Signal Detect (LOS) 128 (overload) 5(sensitivity) mV
10 Power supply voltage (external power supply input voltage) 5.5 4 V
11 Operating temperature 70 10
12 Adaptable module types (support NRZ and PAM4 signals) SFP28/56, SR, LR, BIDI





U9720B CDR (Clock Recovery Module ) is mainly used to provide clock recovery signal in the test environment without triggering clock, so as to use the sampling oscilloscope to test the optical eye diagram of the device. The typical application is the testing of optical network equipment or the BOB product in PON application. Because the photometric device itself has no frequency division clock output, it is necessary to recover the clock signal to trigger the sampling oscilloscope when testing the optical eye diagram.

U9720B CDR has a FC optical interface adapter, which is suitable for optical signal access of conventional SFP28/56, SR, LR and BIDI modules. It supports NRZ and PAM4 signals. FC optical interface receives optical signals and converts them into electrical signals. CDR then abstracts and outputs the clock of electrical signals, and the clock signals are mainly used for the trigger signals of oscilloscopes.
