25 To 28Gbps CDR Optical Oscilloscope 800nm 1600nm

25 To 28Gbps CDR Optical Oscilloscope 800nm 1600nm
25 To 28Gbps CDR Optical Oscilloscope 800nm 1600nm

Large Image :  25 To 28Gbps CDR Optical Oscilloscope 800nm 1600nm

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9764A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 pcs+per month

25 To 28Gbps CDR Optical Oscilloscope 800nm 1600nm

Description
Product Name: CDR Optical Oscilloscope Data Rate Range: 25 To 28 Gbps
Wavelength Range(single Mode): 800 - 1600 Nm Output Electrical Clock Amplitude: 800mVpp
OEM: Yes Customized: Available
Highlight:

28Gbps CDR Optical Oscilloscope

,

25Gbps digital storage oscilloscope

,

25Gbps CDR Optical Oscilloscope

U9764A 25~28Gbps CDR



No. Specifications Max. Min. Unit.
1 Data rate range 28.1 25.6 Gbps/Gbaud
2 Wavelength range(single mode) 1600 800 nm
3 Optical input range(determined by module sensitivity) +3 -12 dBm
4 Clock Recovery Output Divider 2 / 4 / 8 / 16 / 64 / 256
5 Output electrical clock amplitude 800(typical value) mVpp
6 CML clock differential output amplitude 800 200 mVpp
7 Clock output random jitter 800 300 fs
8 Clock frequency (take 28.1Gbps as an example) 14.05 0.11 GHz
9 Internal Loss of Signal Detect (LOS) 128 (overload) 5(sensitivity) mV
10 Power supply voltage (external power supply input voltage) 5.5 4 V
11 Operating temperature 70 10
12 Adaptable module types SFP28, SR, LR, BIDI

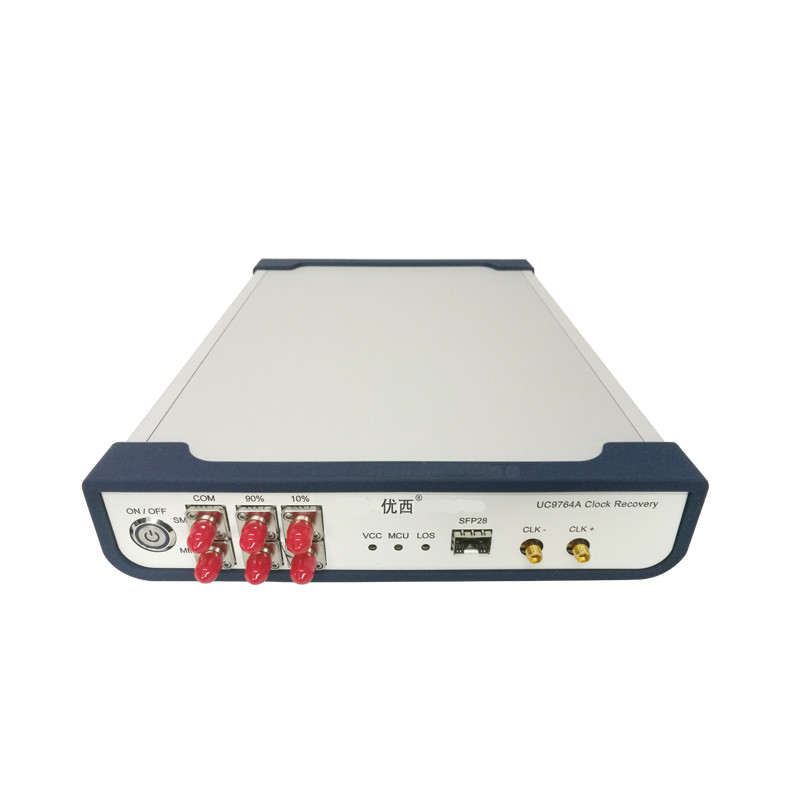

U9764A CDR (Clock Recovery Module ) is mainly used to provide clock recovery signal in the test environment without triggering clock, so as to use the sampling oscilloscope to test the optical eye diagram of the device. The typical application is the testing of optical network equipment or the BOB product in PON application. Because the photometric device itself has no frequency division clock output, it is necessary to recover the clock signal to trigger the sampling oscilloscope when testing the optical eye diagram.
U9764A CDR has a SFP28 optical port, which is suitable for SFP encapsulated conventional SFP28, SR,LR,BIDI and other optical modules. It only needs the receiving end of the optical module to convert the optical signal to the electrical signal, and then extract and output the clock of the electrical signal. Clock signal is mainly used for the trigger signal of oscilloscope.



FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
