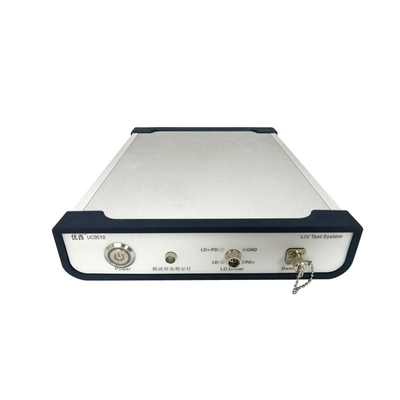

16 Bit Digital Storage Oscilloscope LIV Test System For Tosa Laser Devices

16 Bit Digital Storage Oscilloscope LIV Test System For Tosa Laser Devices
16 Bit Digital Storage Oscilloscope LIV Test System For Tosa Laser Devices

Large Image :  16 Bit Digital Storage Oscilloscope LIV Test System For Tosa Laser Devices

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9510
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 pcs+per month

16 Bit Digital Storage Oscilloscope LIV Test System For Tosa Laser Devices

Description
Product Name: Digital Storage Oscilloscope Acquisition Accuracy: 16 Bit
Calculation Parameters: Ith,Po,Vf,Im,Rs,PSlope,Linearity,Kink Testing Time: < 2 S
Detection Wavelength: 800 -1700 Nm Communication Port: USB2.0
Highlight:

16 Bit digital storage oscilloscope

,

LIV Test System For Tosa Laser Devices

,

USB2.0 digital storage oscilloscope

U9510 LIV Test System



Parameter Qualification
Packaging type Common positive, Common cathodic and Independent type
Main parameters Drive current, Voltage, Optical power, Backlight current
Acquisition accuracy 16 Bit
Calculation parameters Ith,Po,Vf,Im,Rs,PSlope,Linearity,Kink
Drive current 0-150mA,Resolution ≤ 38uA
Backlight current 0-2500uA,Resolution ≤ 1uA
Display optical power 0-10mW,Resolution ≤ 0.1dB
Direct voltage 0-2.5V,Resolution ≤1mV
Scan pattern Scan current output or DC current output
Correcting Function Support user self-calibrate power, voltage, current and backlight
Testing time < 2 s
Transmission interface 12M USB Data interface, Provide standard PC software, an also be customized PC software according to customer requirements.
Detection wavelength 800 -1700 nm(Support for 850 nm VCSEL device testing)
Data library Support local database and SQL database server
TE Test room temp./high temp. or high temp./room temp. is Customizable
Optical detector diameter 1.0 mm (2.0/3.0mm option)
Fiber optic adapter FC rule adapter(SC,universal adapter etc.)
Fiber type Single-mode or Multi-mode
Communication port USB2.0
Power source AC220V±10% 50Hz
Operating temperature 0 – 40 ℃
Dimension 235W x 55H x 320L mm



U9510 LIV Test System is used to test the comprehensive performance parameters of TOSA laser devices.The test system has the advantages of fast response, high precision, small volume, stable and reliable performance. It can replace the same Famous Brand instruments in the LD performance comprehensive test system.



FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
