800mVpp Optical Oscilloscope 25.6Gbps 28.1Gbps

I'm Online Chat Now

800mVpp Optical Oscilloscope 25.6Gbps 28.1Gbps

800mVpp Optical Oscilloscope 25.6Gbps 28.1Gbps
800mVpp Optical Oscilloscope 25.6Gbps 28.1Gbps

Large Image :  800mVpp Optical Oscilloscope 25.6Gbps 28.1Gbps

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9764B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 pcs+per month

800mVpp Optical Oscilloscope 25.6Gbps 28.1Gbps

Description
Product Name: 800mVpp Optical Oscilloscope Data Rate Range: 25.6Gbps To 28.1Gbps
Output Electrical Clock Amplitude: 800mVpp Model: U9764B
Brand: YOUCII Customized: Available
Highlight:

800mVpp Optical Oscilloscope

,

28.1Gbps digital oscilloscope

,

Optical Oscilloscope 25.6Gbps

U9764B 25~28Gbps CDR



No. Specifications Max. Min. Unit.
1 Data rate range 28.1 25.6 Gbps/Gbaud
2 Wavelength range(single mode) 1600 800 nm
3 Optical input range(determined by module sensitivity) +3 -12 dBm
4 Clock Recovery Output Divider 2 / 4 / 8 / 16 / 64 / 256
5 Output electrical clock amplitude 800(typical value) mVpp
6 CML clock differential output amplitude 800 200 mVpp
7 Clock output random jitter 800 300 fs
8 Clock frequency (take 28.1Gbps as an example) 14.05 0.11 GHz
9 Internal Loss of Signal Detect (LOS) 128 (overload) 5(sensitivity) mV
10 Power supply voltage (external power supply input voltage) 5.5 4 V
11 Operating temperature 70 10
12 Adaptable module types SFP28, SR, LR, BIDI

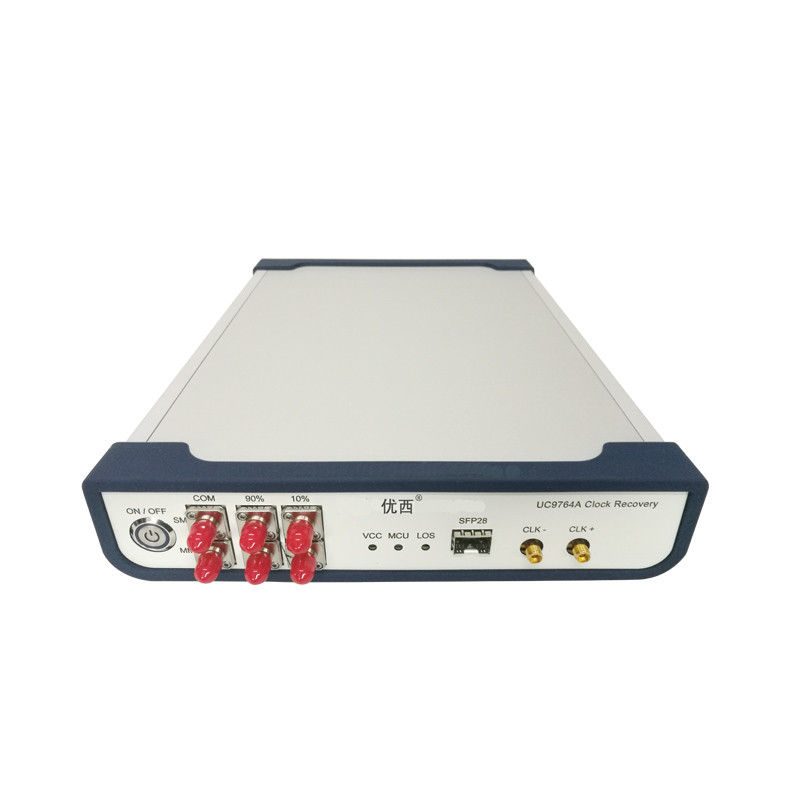

U9764A CDR (Clock Recovery Module ) is mainly used to provide clock recovery signal in the test environment without triggering clock, so as to use the sampling oscilloscope to test the optical eye diagram of the device. The typical application is the testing of optical network equipment or the BOB product in PON application. Because the photometric device itself has no frequency division clock output, it is necessary to recover the clock signal to trigger the sampling oscilloscope when testing the optical eye diagram.
U9764A CDR has a SFP28 optical port, which is suitable for SFP encapsulated conventional SFP28, SR,LR,BIDI and other optical modules. It only needs the receiving end of the optical module to convert the optical signal to the electrical signal, and then extract and output the clock of the electrical signal. Clock signal is mainly used for the trigger signal of oscilloscope.
