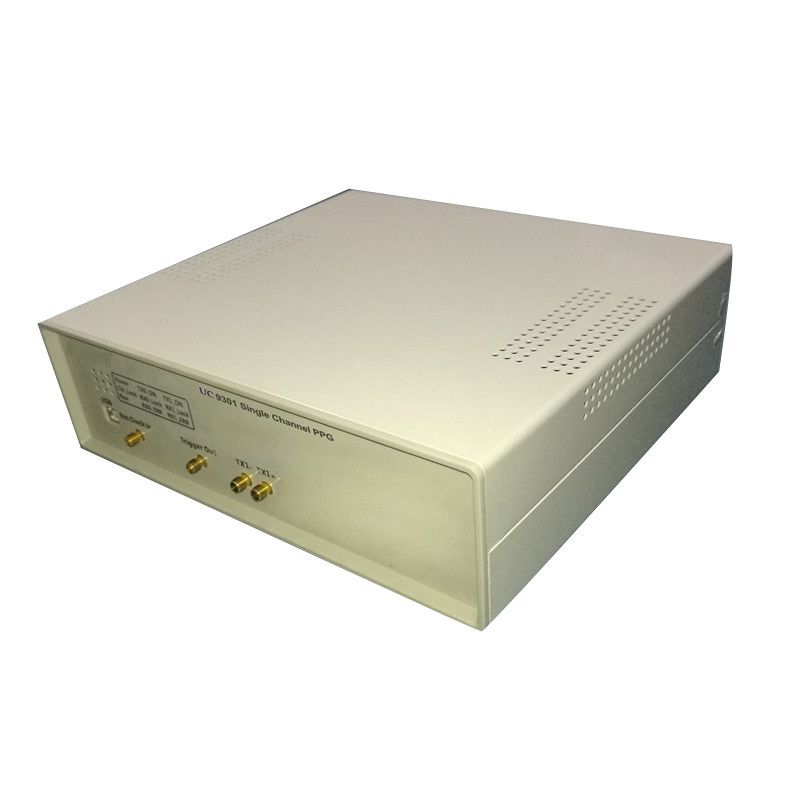

Single Channel Programmable Pattern Generator 2.5Gbps 14.5Gbps

Description
Product Name: Programmable Pattern Generator Channel: Single Channel
Data Rate: 2.5Gbps To 14.5Gbps Intrinsic Jitter (RMS): 1ps
Model: U9301 OEM: Available
Highlight:

Single Channel Programmable Pattern Generator

,

2.5Gbps pattern generator

,

Programmable Pattern Generator

U9301 Single Channel Programmable Pattern Generator



Specifications

Parameter Min. Typ. Max. Unit Notes
Pattern Generator
Data Rate 2.5   14.5 Gbps
Output Level 400   1000 mVpp Differential, AC coupled
Rise/fall times(20% - 80%)   <18   ps
Intrinsic jitter (RMS)   1   ps
Impedance   100   ohm Differential
Connector   2.92   mm Differential, front panel
Output patterns

PRBS 2n-1, n=7, 9, 10, 11, 15, 23, 31,Up to 20 bits/ch, user defined

Trigger Out
Output Level   300   mV Single ended, AC coupled, 50ohm
Clock rate 1/2 or 1/4 or 1/10 divided of data rate
General
Supply Voltage 100 220 240 V AC Power, 50-60Hz;
Power consumption   80   W
Operating temperature 0   55
Dimensions (W×H×D) 280×80×250 mm





Overview

The U9301 2.5~14.5Gb/s Programmable Pattern Generator (PPG) is a high performance, flexible and cost effective broad band data rate covered PPG that can operate from 2.5Gbps to 14.5Gbps. The UC9301 can be used with existing equipment to generate higher rate bit streams for use in telecom applications up to 14.5Gbps. Broadband test systems will benefit from the low power dissipation, precision connectors, and excellent output waveform characteristics. The compact size of the equipment allows the U9301 to be placed at the measurement plane, reducing or eliminating artifacts related to long cables.



The U9301 was designed to characterize high speed digital links during the engineering, manufacturing or installation phases of a project. Such applications could include the testing of IC’s, optical components, transceivers, copper cables, back planes and interconnects. The U9301 can be used for compliance testing of Ethernet, Fiber Channel, Data-com, Infiniband, PCIE, SONET and proprietary link standards.



Application

  • Testing of optical transceiver modules (QSFP28, CFP2, CFP4, SFP28, SFP+ QSFP+ CFP), transponders and subsystems;
  • Testing of active optical cable, RF cables;
  • Testing of Ethernet, Fiber Channel, Data-com.
  • Systems in R&D and manufacturing environments



Key Features

  • Support 2.5-14.5Gbps any date rate;
  • Internal Reference Clock.
