Product Details:
|
Product Name: | Optical Switch | Test Wavelength: | 1310nm 1550nm |
---|---|---|---|
Application: | Optical Transmission System | Power Requirements: | AC 220V |
Chassis Size: | 290mm*120mm*260mm | ||
Highlight: | 1550nm Optical Switch,1310nm optical transmission system,1310nm Optical Switch |

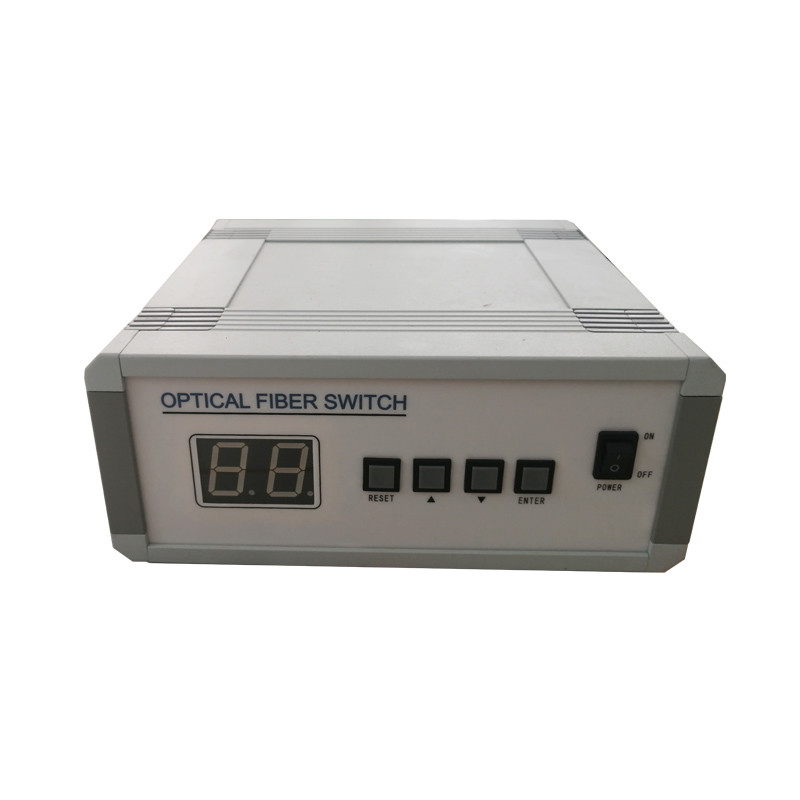

UFSW-4-1×2-SM-C Optical switch
USES:
Multi-channel optical monitoring in optical transmission system;
A multi-source/detector automatic connection switching and multi-point dynamic monitoring system of optical sensing;
The system is used to test optical fibers, optical devices, networks and optical cables in field projects.
Load and adjust optical devices.
Specification
Test wavelength | 1310nm, 1550nm |
Fiber Type | Single Mode |
Optical interface | FC/PC |
Insertion loss | ≤1dB |
Return loss | ≥45dB |
Crosstalk | ≤-70dB |
Switching time | ≤12ms (sequential switching of adjacent channels) |
Repeatability | ≤±0.02dB |
Life | ≥3×107 times |
Working temperature | -20~ +60℃ |
Storage temperature | -40 ~ +70℃ |
Power requirements | AC 220V |
Control interface | RS-232 |
Chassis size | 290mm*120mm*260mm |
FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
