Product Details:
|
| Product Name: | Optical Switch | Size: | 290mm X 120mm X 260mm |
|---|---|---|---|
| Model: | UFSW1×8-SM-C | Fiber: | Single Mode |
| Optical Interface: | FC/PC | Control Interface: | RS-232 |
| Highlight: | PC Optical Switch,AC 220V Optical fiber switch,Optical Switch 290mm X 120mm X 260mm |
||

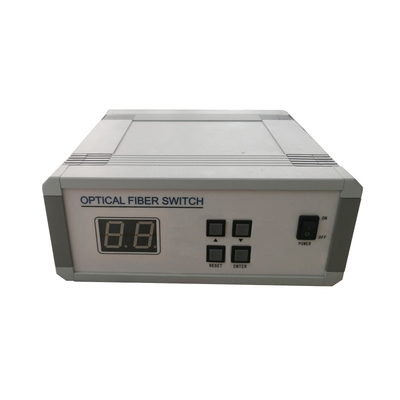

UFSW1×8-SM-C Optical switch
USES:
Multi-channel optical monitoring in optical transmission system;
A multi-source/detector automatic connection switching and multi-point dynamic monitoring system of optical sensing;
The system is used to test optical fibers, optical devices, networks and optical cables in field projects.
Load and adjust optical devices.
Specification
| Test wavelength | 1310nm, 1550nm |
| Fiber Type | Single Mode |
| Optical interface | FC/PC |
| Insertion loss | ≤1dB |
| Return loss | ≥45dB |
| Crosstalk | ≤-70dB |
| Switching time | ≤12ms (sequential switching of adjacent channels) |
| Repeatability | ≤±0.02dB |
| Life | ≥3×107 times |
| Working temperature | -20~ +60℃ |
| Storage temperature | -40 ~ +70℃ |
| Power requirements | AC 220V |
| Control interface | RS-232 |
| Chassis size | 290mm*120mm*260mm |
FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
