Product Details:
|
| Product Name: | Full Function Optic Fiber Tester | Number Of Channels: | 1~64 |
|---|---|---|---|
| Power Range: | +5 ~ -85dBm , +25 ~ -65dBm | Wavelength Range: | 850 ~ 1700 Nm |
| Power Sampling Period(rate): | 1ms (1KHz) ~10 Us(100KHz) | Linearity (power): | ＞ 40 DB |
| Highlight: | Full Function Optic Fiber Tester,optical power meter 1700 nm,Optic Fiber Tester Hand Held |
||

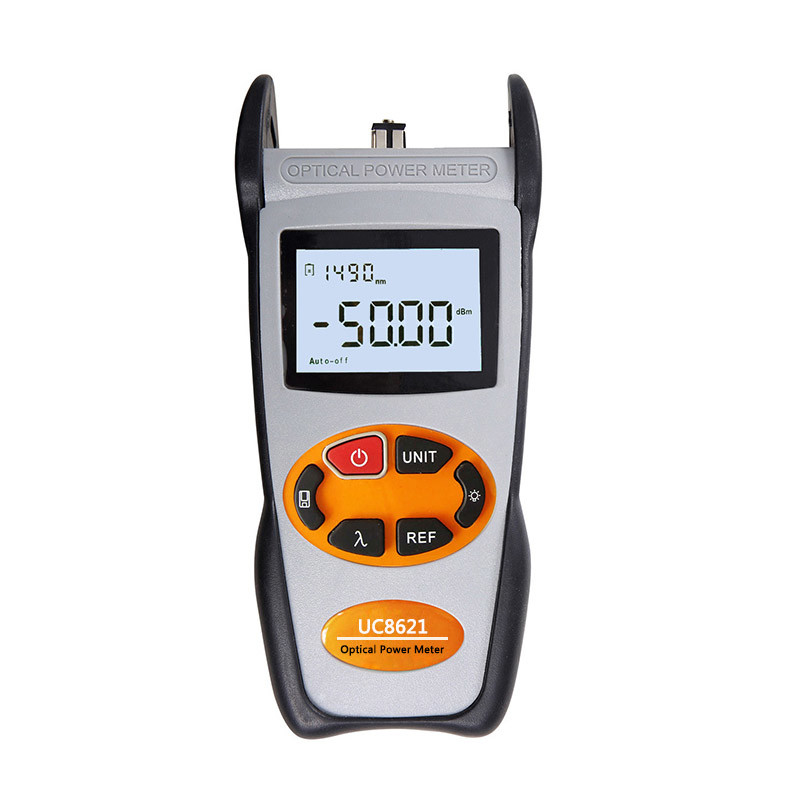

U8621 full-function hand-held optical power meter
U8621 fully functional handheld optical power meter adopts advanced precision laser detecting technology, installation, inspection and maintenance for optical network design and development, as a comprehensive optical power meter, support single-mode/multimode test, large size LCD display, moisture/shock design, ac/dc dual power supply etc, make the products can be widely used in the laboratory and field tests. Concise functional key design, so that you can easily implement fast, high-precision test. Automatic identification of frequency and wavelength, storage capacity of test data up to 1000 groups and simple and convenient data communication of upper computer software make test data management more convenient, fast, accurate and reliable.
Specification
| Technical Parameter | Technical Function |
| Number of Channels | 1~64 |
| Power Range | +5 ~ -85dBm , +25 ~ -65dBm |
| Wavelength Range | 850 ~ 1700 nm |
| Power sampling period(rate) | 1ms (1KHz) ~10 us(100KHz) |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size |
| Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) |
| Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical |
| Linearity (power) | ＞ 40 dB |
| Return Loss | ＞ 40 dB |
| Operation Temperature | 0 ～ +40℃ |
| Storage Temperature | -30 ～ +80℃ |
| Recalibration Period | 2 Year |
