Optical Cable Survey Instrument Optical Fiber Tester AFCID

Optical Cable Survey Instrument Optical Fiber Tester AFCID
Optical Cable Survey Instrument Optical Fiber Tester AFCID

Large Image :  Optical Cable Survey Instrument Optical Fiber Tester AFCID

Product Details:
Place of Origin: CHINA
Brand Name: G-LINK
Model Number: TK100
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 pcs+per month

Optical Cable Survey Instrument Optical Fiber Tester AFCID

Description
Test Mode: Single Fiber Test Wavelength: 1550nm
Initial Blind Area: NO SNR: >40dB
Fiber Interface: SM Screen Size: 5.6"
Power: <6w Weight: 1.5kg
Highlight:

1550nm optical fiber tester

,

AFCID fiber optic light tester

,

optical fiber tester AFCID

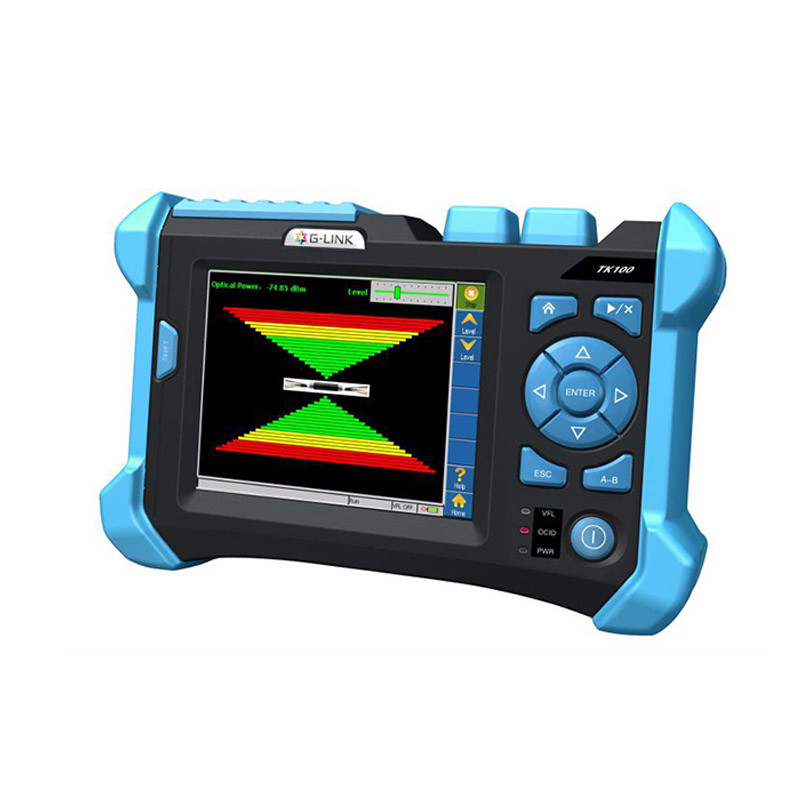

TK100 Optical cable survey instrument Optical fiber tester AFCID





Technical Specification:



model TK100-20N TK100-40N
Test mode Single fiber test
Wavelength 1550nm
Minimum output power of the light source -15dBm -8dBm
Unidirectional cable loss 5dB 10dB
Measuring distance 20km 40km
Initial blind area NO
Requirements for return loss at optical cable ends ≤20dB
SNR >40dB
Fiber Interface SM
Optical connector FC/APC
VFL Wavelength:650nm, Output Power(dBm):≥-3,Furthest distance of tester:5km
Display screen 5.6-inch touch screen
Input mode LCD+KEY
Power DC 12V/3A
Lithium polymer battery 7.4V,10.4Ah,continuous working≥14hours
Volume 65*150*235mm



Configuration:

1. TK200 AFCID

2. Headset

3. Power adapter



4. SC/APC-FC/APC

5. Card reader



6. Cotton Swabs

7. Carry Bag



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
