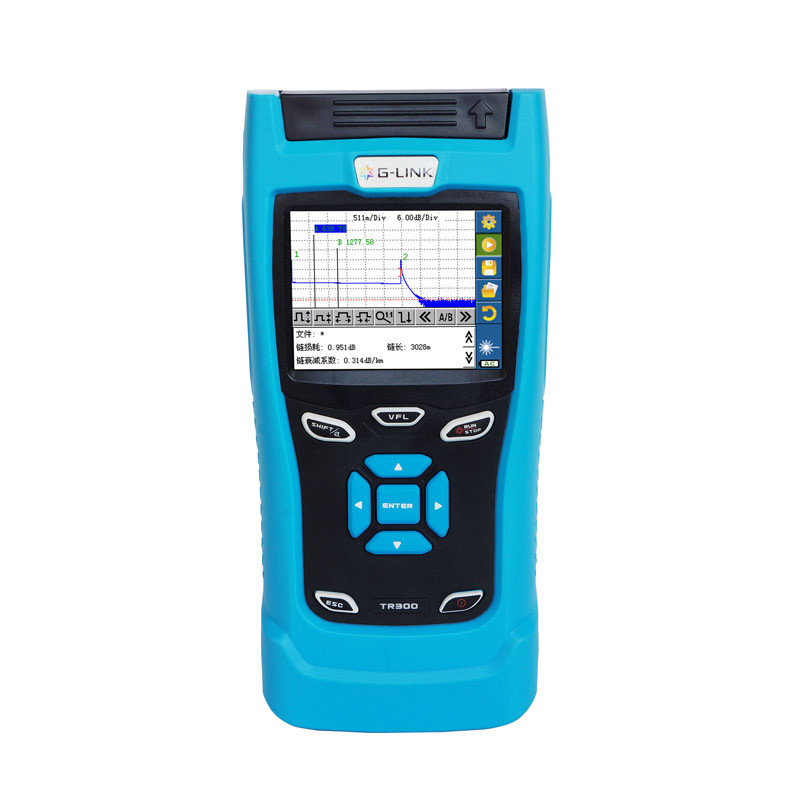

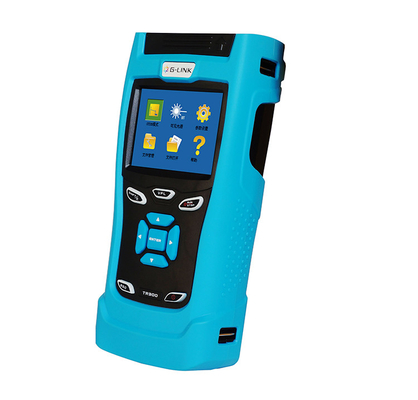

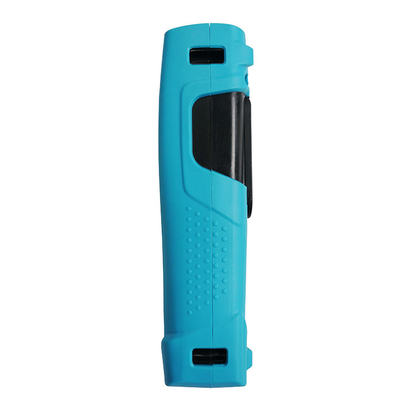

TR306/303 Optical Time Domain Reflectometer Breakpoint Tester OTDR
Technical Specification:
| Technical specifications | ||||
| Model | TR306/TR303 | |||
| Dynamic(±20nm) | 32/30dB | |||
| The Wavelength | 1310/1550 | |||
| Display | 3.5-inch TFT ,LCD touch screen | |||
| The light source type | LD | |||
| Optical interface | FC/UPC | |||
| Distance range(km) | 0.3/1/3/5/10/30/60/120 | |||
| The pulse width(ns) | 5/10/20/40/80/160/320/640/1280/2560/5120/10240/20480/Auto | |||
| Measuring time | 15s/30s/1min/2min/3min | |||
| Attenuation blind area(2) | 15m | 10m | 10m | |
| Events blind area | 3m | 1.8m | 1.6m | |
| Ranging accuracy | ±(1m+5×10-5×distance+Sampling Interval) | |||
| Data Storage | ＞60000 test curve | |||
| Communication interface | USB | |||
| Visible light | Wavelength | - | - | 650 |
| Output Power | - | - | ≥-3 | |
| Test Distance | - | - | 3 | |
| Communication light test | NO | YES | YES | |
Product Introduction:
1, Single mode: 1310/1550 nm.
2, Dynamic range: 30/28dB(can test about 80 km optical fiber line).
3, Automatic measurement mode: 1310/1550 nm dual wavelength can be tested at the same time.
4. Automatic naming and automatic storage of measurement files are realized, which simplifies the operation of operators.
5. Trace fixation function mode for comparison with reference waveform: users can use this function to fix a trace and display another trace under real-time or average measurement on the same screen. The resulting template is useful for multi-core fiber installation or for checking aging fibers in an installed fiber network.
6. Multi-wavelength analysis" function mode for multi-trace comparison: In the "multi-wavelength analysis" mode, the comparison display and analysis function of any trace file can be realized.
7, TR600 short event blind area can be used to measure the optical cable installation process of the office or client two adjacent events. Event blind area can reach 1.5 meters.
8, The ideal LAN/WAN/FTTx authentication and troubleshooting tool, can provide FTTx online testing, and can identify the splitter and optical fiber end.
9, Optimized power supply design: built-in large capacity lithium rechargeable battery, standby time more than 10 hours.
10, Bellcore file format (.SOR), more than 10000 trace storage.
11. Passed CE, FCC, IS09001 certification
12, Communication light detection: can effectively protect the test instrument and communication equipment.
13, Connection status detection: timely understand the connection status of the connection head, so that the operator can measure in the best environment.
14, Flexible measurement mode switch: real-time measurement mode and average measurement mode can be switched by shortcut key operation.
