Product Details:
|
Color: | Blue | Linearity(dB/dB): | ±0.05 |
---|---|---|---|
Event Dead Zone(m)3: | ≤0.8m | ATT Dead Zone(m)3: | ≤1.2m |
Screen Size: | 5.6inch,640*480 | Loss Resolution(dB): | 0.001 |
Sampling Resolution(m): | 0.125 To 8 | Sample Point: | 32K |
Highlight: | OTDR Optical Time Domain Reflectometer,1550nm Optical Fiber Tester,1310nm Optical Time Domain Reflectometer |

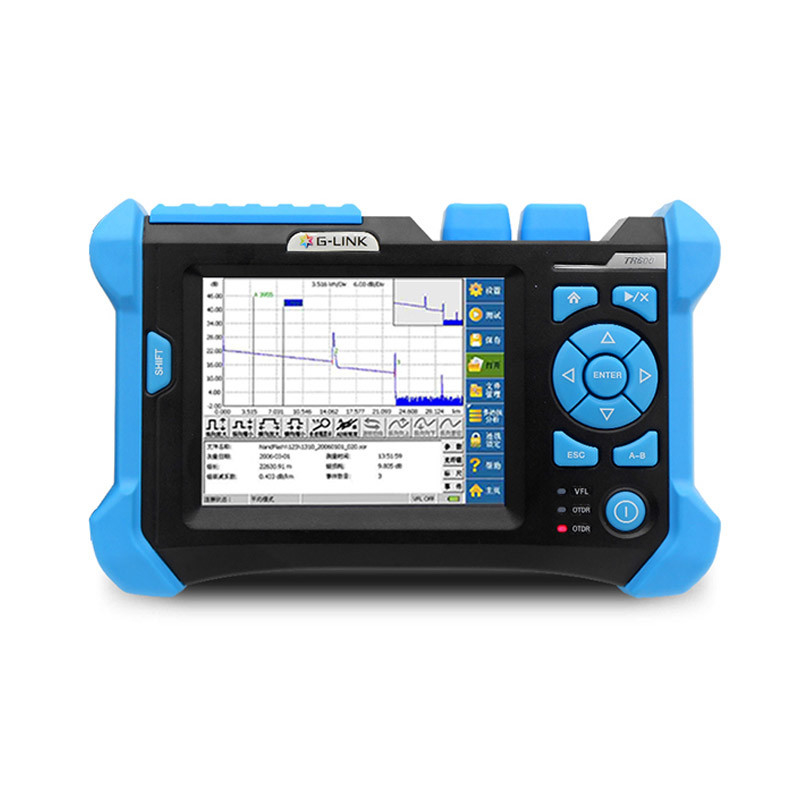

TR600-SV20A Optical Time Domain Reflectometer Optical Fiber Tester OTDR
Technical Specification:
The wavelength (nm) | 850/1300 | 1310/1550 | 1310/1490/1550 | 1625 | |||||||
Dynamic range (dB)2 | 21/19 | 35/33 | 38/36 | 40/38 | 32/30/30 | 344 | 365 | ||||
The pulse width (ns) | 5,20,40,80,160,320,640,1280 | 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 | |||||||||
Events blind area (m)3 | 2m | 2m | |||||||||
Attenuation blind area (m)3 | 9m | 9m | |||||||||
linearity (dB/dB) | ±0.05 dB/ dB | ||||||||||
Loss threshold (dB) | 0.05 | ||||||||||
Loss resolution (dB) | 0.01 | ||||||||||
Sampling resolution (m) | 0.125 to 8 | ||||||||||
The sampling point | 32K | ||||||||||
Distance uncertainty (m) | ±(1 m + 5×10-5× distance + Sampling interval ) | ||||||||||
Distance range (km) | 0.3 to 200 | ||||||||||
Typical real-time refresh duration (s) | 0.2 | ||||||||||
Trace storage capacity | SD card (2G),> Article 1000 | ||||||||||
Measure the length | User defined ,5seconds ,10seconds ,15seconds ,30seconds ,1 minutes,2 minutes ,3 minutes is optional | ||||||||||
The general specification | The interface type | ||||||||||

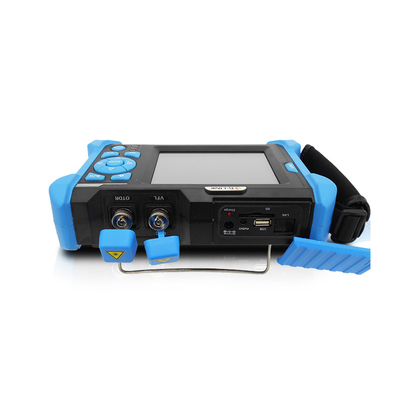

Size(H×W×D) | 150×235×66 | Optical interface | FC/UPC(PC,APC optional) | ||||||||
The weight of the | 1.5kg | Data interface | USB interface,SD card interface | ||||||||
The temperature | Operating temperature -10℃ to 50℃ | ||||||||||
Storage temperature -40℃ to 70℃ | Visual fault location VFL | ||||||||||
Relative humidity | 0% to 95%( The condensation) | The wavelength | 650nm | ||||||||
The power supply | Lithium batteries; Continuous working time ≥8 hours | The output power (dBm) | ≥-3 | ||||||||
Warranty period | 12 months | Test maximum distance | 5km | ||||||||
Note: 1. Technical specifications describe the guaranteed performance of the instrument when measuring with a typical PC connector.The uncertainty caused by fiber refractive index is not considered. |

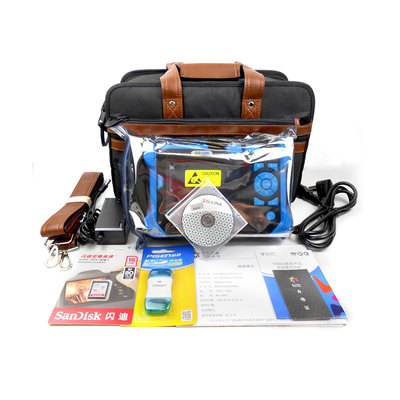

Configuration:
1. TR600 SV20A Optical time domain reflectometer host + FC, SC adapter
2. Curve analysis software + manual
3. Power adapter
4. SD card + card reader
5. Carry bag
Product Description:
● Comprehensive optical fiber testing applications, providing multi-wavelength selection:
Single mode: 1310/1490/1550/1625nm (with filter), Max. 40dB
Multi-mode: 850/1300nm, 18/22dB
● Automatic measurement mode: Simply select the wavelength to be measured, and TR600 does the rest, including automatically setting measurement conditions, performing measurements, event searching, and automatic data saving.
● Automatic naming and automatic storage of measurement files can be realized, which simplifies the operation procedure of operators.
● Multi-wavelength measurement mode with automatic wavelength switching: In the parameter setting, you can select multiple wavelengths at the same time and click the measurement to execute. In Multi-wavelength Measurement mode, you can view the attenuation status of the same optical fiber at different wavelengths to better analyze the measured light.
● Trace fixation function mode for comparison with reference waveform: users can use this function to fix a trace and display another real-time or average measured trace on the same screen. The resulting template is useful for multi-core fiber installation or for checking aging fibers in an installed fiber network.
● Multiple trace comparison "multi-wavelength analysis" function mode: in the "multi-wavelength analysis" mode, can achieve any trace file comparison display analysis function.
●TR600 short event blind area can be used for optical cable installation in the process of office or client two adjacent events to be measured. Event blind area can reach 1.5 meters.
● Ideal LAN/WAN/FTTx authentication and troubleshooting tool that provides FTTx online testing and identifies splitters and fiber ends.
● Efficient man-machine interface, touch-screen design, intuitive operation, easy to use, easy to carry.
● Optimized power supply design: built-in large capacity lithium rechargeable battery, standby time more than 8 hours.
●Bellcore file format (.SOR), more than 10000 trace storage.
●CE, FCC, IS09001 certification.
● Communication light detection: can effectively protect the test instrument and communication equipment.
● Connection status detection: to timely understand the connection status of the connection head, so that the operator can measure in the best environment.
● Flexible measurement mode switching: real-time measurement mode and average measurement mode can be switched by shortcut key operation.
G-link OTDR TracesManager PC software:
● Can browse and analyze the test trace file.
● Display measurement trace, event list, measurement parameters, measurement results and other data information.
● Easy to achieve batch modification, batch printing function.
● The software based on Windows PC can analyze/edit the test trace on THE PC, and also generate different forms of test reports according to user needs.
● Provide flexible printing mode: single page single trace printing mode, batch printing mode, single page multi-trace printing mode, multi-waveform display printing mode. Provides personalized options for printing options and page Settings.
● Waveform difference comparison function: in the waveform window, multiple waveforms can be opened in the same window at the same time, and the differences between waveforms can be displayed in the same window, so that it is easier to compare the parameter changes caused by reasons such as fiber aging.
● The whole interface display is very intuitive, simple operation, do not need to use the manual to get started.
