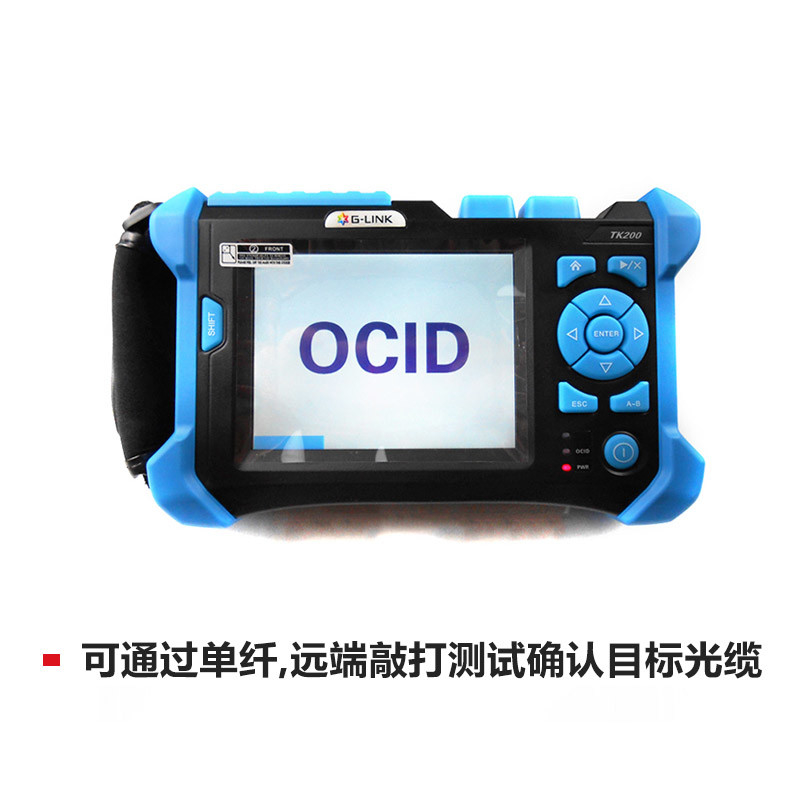

Enhanced Optic Fiber Tester Optical Cable Survey Instrument

Enhanced Optic Fiber Tester Optical Cable Survey Instrument
Enhanced Optic Fiber Tester Optical Cable Survey Instrument

Large Image :  Enhanced Optic Fiber Tester Optical Cable Survey Instrument

Product Details:
Place of Origin: CHINA
Brand Name: G-LINK
Certification: CU,IOS
Model Number: TRK200-40A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 15 pcs+per month

Enhanced Optic Fiber Tester Optical Cable Survey Instrument

Description
Product Name: Enhanced Optic Fiber Tester Power Sampling Period(rate): 1ms (1KHz) ~10 Us(100KHz)
Return Loss: > 40 DB Operation Temperature: 0 ~ +40℃
Storage Temperature: -30 ~ +80℃ Wavelength Range: 850 ~ 1700 Nm
Highlight:

Enhanced Optic Fiber Tester

,

fiber testing equipment 1700 nm

,

64 channels Optic Fiber Tester

TRK200-40A Enhanced optical cable survey instrument



Optical Power Meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers EDFA, and other general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines. The optical power meter measurement system of UC Instruments has the characteristics of high measurement accuracy, fast sampling speed, small size, fast start-up and affordable price. They provide low power, high power, single channel and dual channel optical power meter Probe options. The Optical Power Meters are also capable of providing a channel count solution of up to sixty-Four channels.



Specification

Technical Parameter Technical Function
Number of Channels 1~64
Power Range +5 ~ -85dBm , +25 ~ -65dBm
Wavelength Range 850 ~ 1700 nm
Power sampling period(rate) 1ms (1KHz) ~10 us(100KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size
Absolute Uncertainty (accuracy) at reference condition ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition < 0.02 dB Typical
Linearity (power) > 40 dB
Return Loss > 40 dB
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Recalibration Period 2 Year
