1650nm Optical Level Switch Fiber Optic Transmission System

I'm Online Chat Now

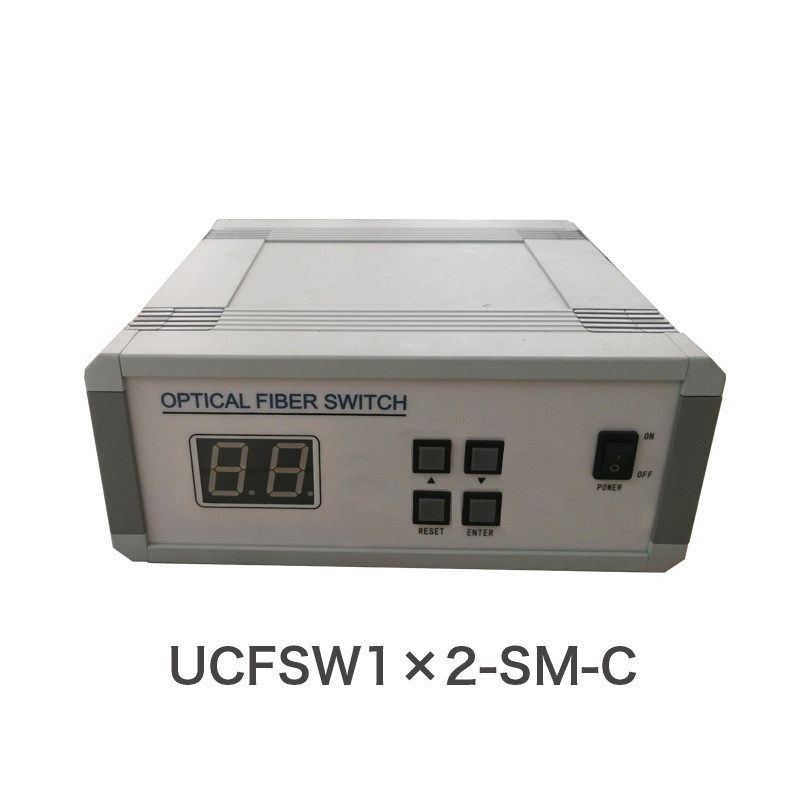

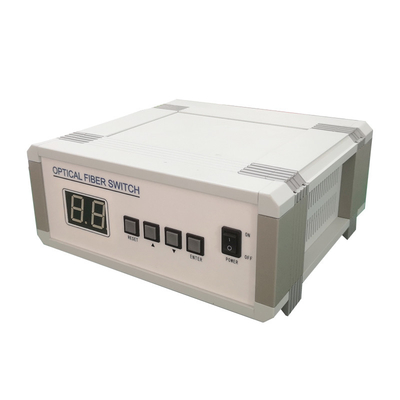

1650nm Optical Level Switch Fiber Optic Transmission System

1650nm Optical Level Switch Fiber Optic Transmission System
1650nm Optical Level Switch Fiber Optic Transmission System 1650nm Optical Level Switch Fiber Optic Transmission System

Large Image :  1650nm Optical Level Switch Fiber Optic Transmission System

Product Details:
Place of Origin: China
Brand Name: YOUCii
Certification: CU,IOS
Model Number: UFSW1×2-SM-C
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 pcs+per month

1650nm Optical Level Switch Fiber Optic Transmission System

Description
Working Wavelength: 1260~1650nm Product Name: Optical Level Switch
Model: UFSW1×2-SM-C Optical Interface: FC/PC
Power Requirements: AC 220V Chassis Size: 288mm×260mm×117mm
Highlight:

1650nm optical level switch

,

1650nm fiber optic transmission system

,

1260nm optical level switch

UFSW1×2-SM-C Optical switch





USES:

Multi-channel optical monitoring in optical transmission system;

A multi-source/detector automatic connection switching and multi-point dynamic monitoring system of optical sensing;

The system is used to test optical fibers, optical devices, networks and optical cables in field projects.

Load and adjust optical devices.



Specification

Working wavelength 1260~1650nm
Fiber Type Single Mode
Optical interface FC/PC
Insertion loss ≤1dB
Return loss ≥45dB
Crosstalk ≤-70dB
Switching time ≤12ms (sequential switching of adjacent channels)
Repeatability ≤±0.02dB
Life 3×107 times
Working temperature -20~ +60℃
Storage temperature -40 ~ +70℃
Power requirements AC 220V
Control interface RS-232
Chassis size 288mm×260mm×117mm



FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
