Product Details:
|
| Device Package: | Butterfly | Wavelength Accuracy: | ± 2 Nm |
|---|---|---|---|
| Output Power: | ≥10.0mW | Connector Type: | FC/APC |
| Bandwidth@3 DB: | ＜ 0.1 Nm | Bandwidth@20 DB: | ＜ 0.5 Nm |
| SMSR: | ＞ 45 DB（1270nm Etc.） | ||
| Highlight: | Multiple Channels Tunable Laser Source UC,Multiple Channels DFB laser source,Power Meter Tunable Laser Source |
||
Multiple channels DFB laser source Power meter signal source
Specification
| Model # | U8130 |
| Device Package | Butterfly |
| Optional Wavelength |
850, 980, 1250, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, or 1625 nm and etc. |
| Wavelength Accuracy | ± 2 nm |
| Output Power | ≥10.0mW |
| Connector Type | FC/APC(Other Adaptor Can Be Customized) |
| Bandwidth@3 dB | ＜ 0.1 nm |
| Bandwidth@20 dB | ＜0.5 nm |
|
Output Power Stability within 15mins |
≤±0.005 dB |
|
Output Power Stability within 8 hrs |
≤±0. 05 dB |
| SMSR | ＞ 45 dB(1270nm etc.) |
| Operation Temperature | 0～ +40 ℃ |
| Storage Temperature | -30～+80 ℃ |
| Dimensions | 235 mm W, 55 mm H, 320 mm D |
| Weight | 3.0 kg |

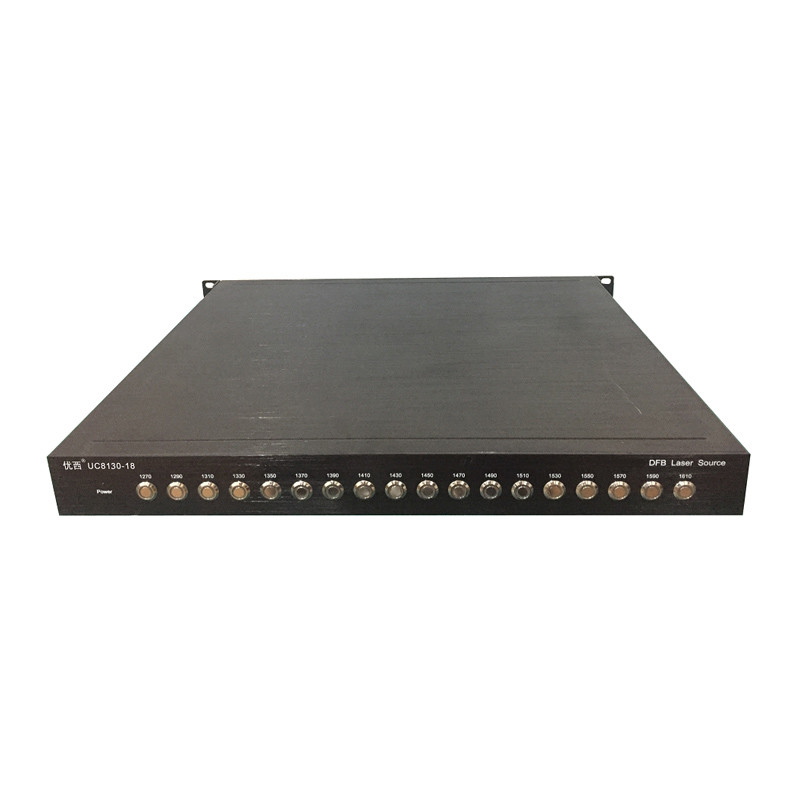

U8130 Multichannel DFB laser source offer superior performance for the testing of CWDM, DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It is specifically designed for high volume CWDM, couplers and PLC production line application.
UC8130 Multichannel DFB laser source is a high stability, compact-sized, fast-starting, and affordable optical laser source. It provides Multichannel high performance, fixed wavelength output. Any two or four and more of the following channels can be provided on request: 850, 980, 1250, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, or 1625 nm and etc.
FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
