Handheld Optical Power Meter 850nm 1310nm 1490nm 1550nm 1625nm

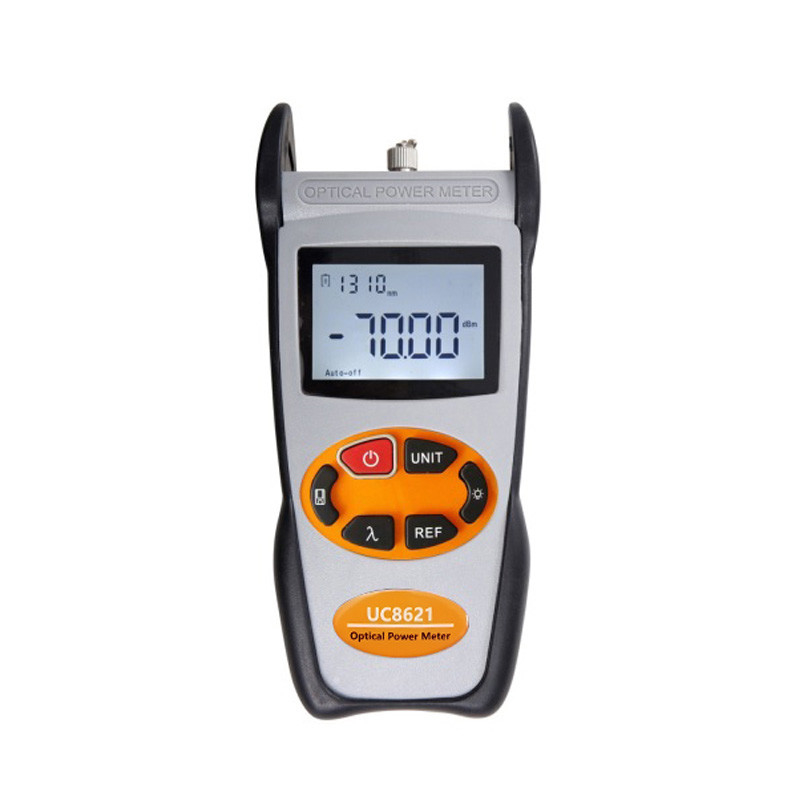

Large Image : Handheld Optical Power Meter 850nm 1310nm 1490nm 1550nm 1625nm

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCII
Certification:	CU,IOS
Model Number:	UC8621

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	100pcs+per month

Contact Now

Handheld Optical Power Meter 850nm 1310nm 1490nm 1550nm 1625nm

Description

Calibration Wavelength（nm）:	850/1300/1310/1490/1550/1625	Detector Type:	InGaAs
Display Resolution(dB):	0.01	Frequency ID（Hz）:	270，1K，2K
Date Storage Capacity:	1000	Communication Port:	USB
Standard Connector:	FC/PC Or FC,SC Interchangeable
Highlight:	1300nm Optical Power Meter , 850nm Optical Power Meter , Handheld Optical Power Meter

850 /1300 /1310 /1490 /1550 /1625nm Handheld optical power meter

U8621 full-function handheld optical power meter adopts advanced precision laser detection and processing technology, aiming at optical network installation, acceptance and maintenance design and development. As a comprehensive optical power meter, it supports single-mode/multi-mode test, large-size LCD display, moisture-proof/shock-proof design, AC/DC dual power supply, etc., making the product widely used in laboratory and field test. The simple function key design makes it easy for you to implement fast and high-precision testing, frequency and wavelength recognition, up to 1000 sets of test data storage capacity and convenient PC companion software upload function, making test data management more convenient, fast and accurate.

Specifications

Calibration Wavelength(nm)	850/1300/1310/1490/1550/1625
Detector type	InGaAs
Measurement Range(dBm)	Type A:-70～+6	Type C:-50～+26
Uncertainty (dB)	±0.15(3.5%)
Display resolution(dB)	0.01
Frequency ID(Hz)	270,1K,2K
Date Storage Capacity	1000
Communication Port	USB
Standard Connector	FC/PC or FC,SC interchangeable
Alkaline battery	3*AA,1.5V
Power Adapter(V)	8.4
Battery Operating time (h)	200 without backlight
Operation Temperature(℃)	-10～+60
Storage Temperature(℃)	-25～+70
Dimension(mm)	2009050
Weight(g)	285

Remark: Battery operating time is based on the condition of the power off the backlight. If power on the backlight continuously,

the operation time will be shorter.

Standard configuration

No.	name	qty
1	Optical Power Meter	1
2	User Manual	1
3	USB cable	1
4	CD	1
5	1.5V AA battery	3
6	Cotton Swabs	1
7	Carry Bag	1

Functions and Features

Optic power test
Wave ID—Auto wavelength identification & switching
Frequency ID ---Auto frequency identification
1000 records storage or download via USB cable
USB communication port for saved testing records download
Reference power level can be set up and stored
User self-calibrating function
Auto-off function
