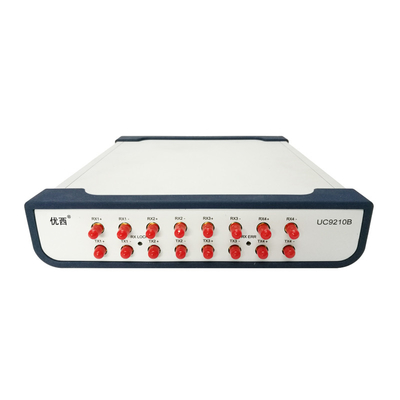

Four - Channel Multi-Rate BERT Support 10Gbps (9.953/10.3125G)
UC9210B serial bit error tester is a universal bit error rate tester designed for high-speed digital communication components and system testing.
The serial bit error tester provides the function of code type occurrence and bit error detection with the highest rate of 11.3Gbps at extremely high cost performance. The analyzer provides four differential electrical ports (up to 11.3Gbps) for bit error testing.
UC9210B has compact structure and small volume. Support for USB or Ethernet communication interfaces makes integration into automated test environments smoother.
The operating interface of UC9210B serial bit error tester is suitable for Windows-XP/WIN7/WIN8/WIN10 operating system, based on PC user operation and graphical display interface, it is very convenient for laboratory or production line working environment. The following three sets are used superimposed with 12 channels test interface:
UC9210B serial bit error tester features
· 9.953Gbps to 11.3Gbps code generator and error detector
· Input sensitivity less than 50 mVpp
· Fast bit mode synchronization
· Intuitive user interface and Windows operating system
· Support remote control commands
Standard code selection:
PRBS7, PRBS9, PRBS15, PRBS23, PRBS31
Support for standards and rates
9.953Gbps, 10.3125Gbps, 10.519Gbps, 10.702Gbps, 11.096Gbps, 11.317Gbps
Communication/network management interface
USB: Support USB1.0/2.0, based on PC software user operation and graphical display interface;
Facilitates remote operation, network management, and monitoring.
Power supply: External 5V power adapter:
Rated output of power adapter: 5V5A
Power adapter input specifications: 90~240V, 50~65Hz, 10W,
The environment temperature
Operating temperature: -20℃ to +50℃
Storage temperature: -40℃ to +85℃
Relative humidity
Humidity: 20% to 80%
Storage humidity: 5% to 90%
Physical properties
Dimensions: 235W×55H×255L (mm)
The weight of the
Less than 2 kg
